600 Series Switched Socket Thermal Over-current Protection 10A Horizontal 250V

Home ProductsSwitches and Sockets600 SeriesSwitched Socket

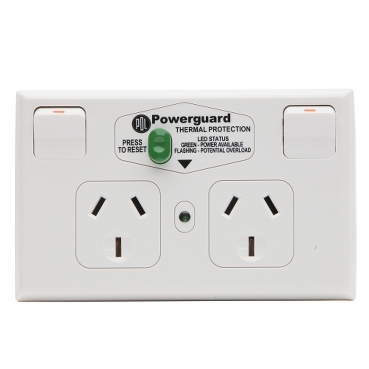

600 Series Switched Socket Thermal Over-current Protection 10A Horizontal 250V | White

Item Number: PDL695TWH

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

600 Series

Product or component type

socket-outlet

Colour tint

white

Surface finish

gloss

Physical

Control type

rocker

Installation direction

horizontal

Width

118 mm

Height

74 mm

Rated current

10 A

[ue] rated operational voltage

230/240 V

Number of gangs

2 gangs

Number of poles

2

Mounting mode

surface mounted

Fixing center

84 mm

Ambient air temperature for operation

-10...40 °C

Quantity per set

set of 10

Type of packing

carton

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Material

Material

PC (polycarbonate)

Others

Package 1 bare product quantity

1

Network frequency

50 Hz

Cable cross section

3 x 2.5...2.5 mm²

Cut-out dimensions

50 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.0 cm

Package 1 width

7.6 cm

Package 1 length

12.0 cm

Package 1 weight

194.0 g

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

17.9318774709
