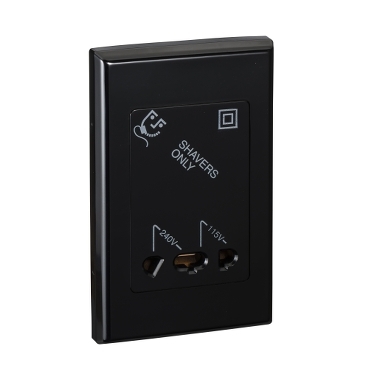

600 Series Universal Shaver Socket Outlet Vertical | Black

Item Number: PDL675BK

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

600 Series

Product or component type

shaver socket-outlet insert

Colour tint

white

Surface finish

gloss

Physical

Installation direction

  • vertical
  • horizontal

Width

118 mm

Height

74 mm

[ue] rated operational voltage

115/240 V

Number of gangs

1 gang

Mounting mode

surface mounted

Fixing center

84 mm

Ambient air temperature for operation

-10...40 °C

Quantity per set

set of 1

Type of packing

carton

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant By Exemption

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

PC (polycarbonate)

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Weee label

N/A

Weee applicability

Finished product

Warranty duration(in months) bmecat

18

Outside of Europe

Average percentage of recycled plastic content

0 %

Network frequency

50 Hz

Cable cross section

2.5...2.5 mm²

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.0 cm

Package 1 width

7.7 cm

Package 1 length

11.8 cm

Package 1 weight

651.0 g

Sustainable packaging

Yes

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

China rohs label

5

Take-back

No

Warranty (in months)

18
