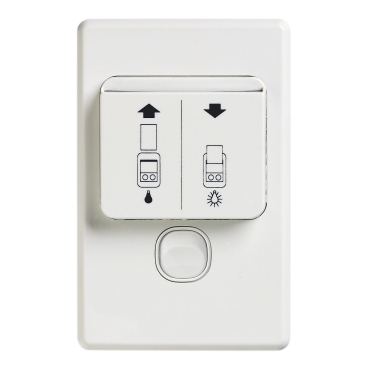

C2000 Series Access Card Operated Switch 250V, 16A, 1 x 16A, 1 x 10A circuit | White Electric
Item Number: C2033CC2X-WE
Datasheet
Close
Specifications
Design
Range of product
Classic Series C2000
Product brand
Clipsal
Surface finish
glossy
Physical
Device presentation
basic element with full cover plate
Local signalling
without
[ue] rated operational voltage
250 V AC
Rated current
10 A
Load type
- fluorescent 16 A
- LEDi lamp 250 W
Marking
without marking
Actuator
access card
Mercury free
Yes
Rohs exemption information
Yes
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4 cm
Package 1 width
7.5 cm
Package 1 length
11.5 cm
Package 1 weight
0.111 kg
Sustainable packaging
No
Warranty (in months)
18
Documents & downloads
hide showFilter items
-
All
-

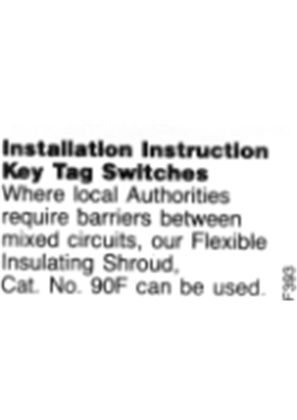

Installation Instruction
-

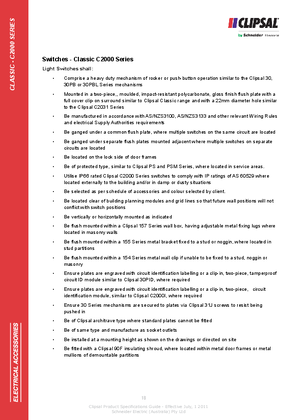

Specification Guide
-
Certificates (MSDS)
-

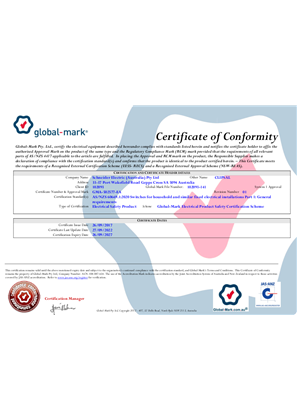

Declaration of Conformity (Sustainability)
Important: Some software files may need a mySchneider or Club login to download.
