C2000 Series RCD Protected Socket Outlet Double, 250V, 10A, 30mA

White Electric 1 PCE 1
Black 1 PCE 1

Home ProductsSwitches and SocketsC2000 SeriesRCD Protected Socket Outlet

C2000 Series RCD Protected Socket Outlet Double, 250V, 10A, 30mA | White Electric

Item Number: C2025RCD30-WE

White Electric 1 PCE 1
Black 1 PCE 1

Datasheet

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554694982	WE
5	CAR	9311554694999	WE
1	PCE	9311554694807	BK

Specifications

Design

Range of product	Classic Series C2000
Product or component type	switched socket
Product brand	Clipsal
Surface finish	glossy

Physical

Control type	ON/OFF button
Number of gangs	2 gangs
Pin number	3
Number of power socket outlets	2
Actuator	rocker switch
Fixing mode	by screws
Local signalling	without light indicator
Mounting position	horizontal
[ue] rated operational voltage	250 V AC
[in] rated current	10 A
Depth	28 mm
Length	116 mm
Width	76 mm
Fixing center	84 mm
Standards	AS/NZS 3112
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP120506EN_V2
Eu rohs directive	Compliant By Exemption

Material

Material	plastic

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Weee applicability	Finished product
Warranty duration(in months) bmecat	18
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7.2 cm
Package 1 width	9.4 cm
Package 1 length	12.2 cm
Package 1 weight	204 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	1 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.1764896
Carbon footprint of the manufacturing phase [a1 to a3]	1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.26323274
Carbon footprint of the distribution phase [a4]	0.3 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.9285118
Carbon footprint of the installation phase [a5]	0.9 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.345771674
Carbon footprint of the use phase [b2, b3, b4, b6]	0.3 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.3228786
Carbon footprint of the end-of-life phase [c1 to c4]	0.3 kg CO2 eq.
Pvc free	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	1.4226887911
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
Product Brochures
Installation Instruction
Declaration of Conformity
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

Classic Convertibles, for an instant colour change, 23070

Classic Convertibles, for an instant colour change, 23070

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 1.1 MB

Clipsal Lifesavers in Electrical Protection - 22498

Clipsal Lifesavers in Electrical Protection - 22498

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 1.4 MB

Clipsal’s Circuit Identity Solution - window ID labelling system - 14894

Clipsal’s Circuit Identity Solution - window ID labelling system - 14894

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 184.4 KB

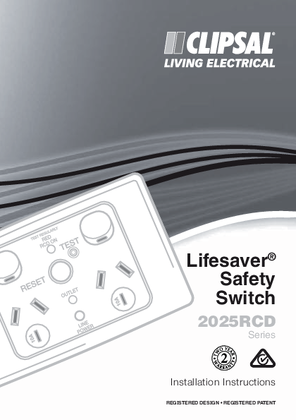

Installation Instructions - F2063/1 - Lifesaver® Safety Switch 2025RCD Series
