Home ProductsSwitches and SocketsC2000 SeriesSingle Switch Socket Outlet

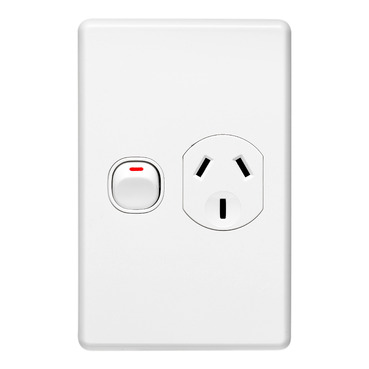

C2000 Series Single Switch Socket Outlet 250V, 10A, Vertical | White Electric

Item Number: C2015V-WE

White Electric 1 PCE 1
Black 1 PCE 1
Cream 1 PCE 1
Desert Sand 1 PCE 1
Soft Grey 1 PCE 1

Socket outlet for vertical installations. Single switched socket with optional extra switch. Clipsal C2000. Colour: White Electric Rated current: 10A. Operating voltage 250V a.c. 50Hz. Note: Requires installation by an appropriately licenced electrician.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554345624	WE
10	BB1	9311554353964	WE
100	CAR	19311554353961	WE
1	PCE	9311554345570	BK
50	CAR	19311554353862	BK
1	PCE	9311554345594	CM
10	CRT	9311554353902	CM
100	CAR	19311554353909	CM
1	PCE	9311554345600	DS
10	CRT	9311554353919	DS
100	CAR	19311554353916	DS
1	PCE	9311554345617	SG
10	CRT	9311554353940	SG
100	CAR	19311554353947	SG

Specifications

Design

Range of product	Classic Series C2000
Product brand	Clipsal
Surface finish	glossy

Physical

Control type	ON/OFF button
Number of gangs	1 gang
Pin number	3
Number of power socket outlets	1
Actuator	rocker switch
Fixing mode	by screws
Local signalling	without light indicator
Mounting position	vertical
[ue] rated operational voltage	250 V AC
[in] rated current	10 A
Depth	28 mm
Length	116 mm
Width	76 mm
Fixing center	84 mm
Standards	AS/NZS 3112
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP120506EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Material

Material	plastic

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Main colour tint	white electric
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	3.3 cm
Package 1 width	7.5 cm
Package 1 length	11.6 cm
Package 1 weight	83.0 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0.7 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.406259503774892
Carbon footprint of the manufacturing phase [a1 to a3]	0.4 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.015351020922944391
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0027794316884592885
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.1056339273201361
Carbon footprint of the use phase [b2, b3, b4, b6]	0.1 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.20244459364269624
Carbon footprint of the end-of-life phase [c1 to c4]	0.2 kg CO2 eq.
Pvc free	Yes
Halogen-free status	Product contains halogen above thresholds
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.7324684773491279
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
China rohs label	5
Halogen-free status	Product contains halogen above thresholds
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
