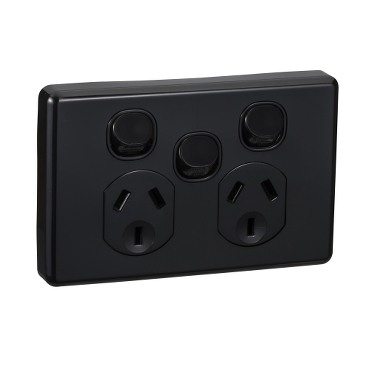

C2000 Series Socket Outlet Switch Double Horizontal, 250V, 10A, Extra Switch

White Electric 1 PCE 1
Black 1 PCE 1
Cream 1 PCE 1
Soft Grey 1 PCE 1

Home ProductsSwitches and SocketsC2000 SeriesSocket Outlet Switch

C2000 Series Socket Outlet Switch Double Horizontal, 250V, 10A, Extra Switch | White Electric

Item Number: C2025XAS-WE

White Electric 1 PCE 1
Black 1 PCE 1
Cream 1 PCE 1
Soft Grey 1 PCE 1

Datasheet

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554350857	WE
10	BB1	9311554365578	WE
100	CAR	19311554365575	WE
1	PCE	9311554350949	BK
5	CRT	9311554365493	BK
50	CAR	19311554365490	BK
1	PCE	9311554350888	CM
10	CRT	9311554365523	CM
100	CAR	19311554365520	CM
1	PCE	9311554350901	SG
10	CRT	9311554365561	SG
100	CAR	19311554365568	SG

Specifications

Design

Range of product	Classic Series C2000
Product or component type	switched socket
Product brand	Clipsal
Surface finish	glossy

Physical

Control type	ON/OFF button
Number of gangs	2 gangs
Pin number	3
Number of power socket outlets	2
Actuator	rocker switch
Fixing mode	by screws
Local signalling	without light indicator
Mounting position	horizontal
[ue] rated operational voltage	250 V AC
[in] rated current	10 A
Depth	28 mm
Length	116 mm
Width	76 mm
Fixing center	84 mm
Standards	AS/NZS 3112
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP120506EN
Eu rohs directive	Compliant By Exemption

Material

Material	plastic

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Weee applicability	Finished product
Warranty duration(in months) bmecat	18
Main colour tint	white electric
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.8 cm
Package 1 width	7.6 cm
Package 1 length	11.6 cm
Package 1 weight	156 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	1 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.7635720793841343
Carbon footprint of the manufacturing phase [a1 to a3]	0.8 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.02885252125276295
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.005223992089152397
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.38049827238868206
Carbon footprint of the end-of-life phase [c1 to c4]	0.4 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	1.1781468651147318
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
