Mechanisms, Occupancy Sensor With Auto Dimming, Dual-Load 360º PIR

Home ProductsSwitches and SocketsClipsal - MechanismsOccupancy Sensor With Auto Dimming

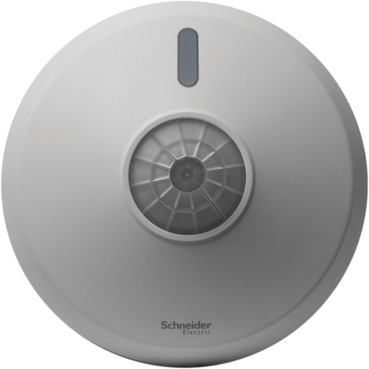

Mechanisms, Occupancy Sensor With Auto Dimming, Dual-Load 360º PIR White Electric

Item Number: SAE_UE_MS_CDDWE

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

ARGUS

Range

ARGUS

Product or component type

occupancy sensor

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Load type

halogen lamp <= 1000 VA|HVAC <= 5 A 250-250 V AC cos phi = 1 |energy saving lamp <= 80 VA|incandescent lamp <= 2000 W|low voltage halogen lamp with conventional transformer <= 1000 VA|low voltage halogen lamp with electronic transformer <= 1000 VA|fluorescent lamp <= 1000 VA|LED lamp <= 200 W|1-10 V ballast <= 100 mA|HVAC <= 5 A 30-30 V DC

Rated voltage

230 V +/- 10 % AC 50/60 Hz

Detection angle

360°

Presence detection area

PIR: 360°, 8 x 8 m

Device mounting

flush|surface

Mounting support

ceiling

Mounting height

2...3 m

Depth

62 mm

Ip degree of protection

IP40 flush mounting|IP54 surface mounting

Ambient air temperature for operation

0...45 °C indoor|-20...45 °C outdoor

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP110502EN

Circularity profile

ENVEOLI110502EN

Others

Package 1 bare product quantity

1

Diameter

110 mm

Electrical shock protection class

class II

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

12.2 cm

Package 1 width

11.7 cm

Package 1 length

17.7 cm

Package 1 weight

436.0 g

Unit type of package 2

CAR

Number of units in package 2

20

Package 2 height

42.0 cm

Package 2 width

42.0 cm

Package 2 length

51.0 cm

Package 2 weight

9900.0 g
Show all specifications
