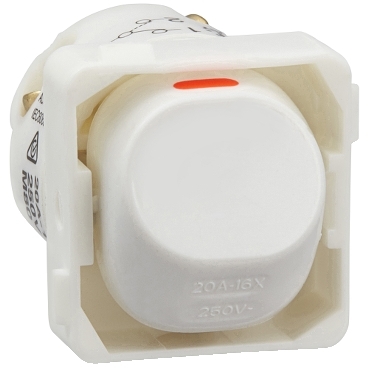

Mechanisms Switch Mechanism 250V, 20A, 1 way/2 way, Red Dot Dolly, 16AX

Home ProductsSwitches and SocketsClipsal - MechanismsSwitch Mechanism

Mechanisms Switch Mechanism 250V, 20A, 1 way/2 way, Red Dot Dolly, 16AX | White Electric

Item Number: 30USMRD-WE

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

  • Series 30
  • Standard Series

Product brand

Clipsal

Physical

Device presentation

basic element

Device mounting

flush

Number of rocker

1

Local signalling

without

[ue] rated operational voltage

250 V AC

Rated current

  • 20 A
  • 16 AX, fluorescent lamp

Marking

without marking

Actuator

rocker

Switch function

  • 1-way
  • 2-way

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP120506EN

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Outside of Europe

Average percentage of recycled plastic content

0 %

Package 1 bare product quantity

1

Legacy weee scope

In

Weee label

N/A

Weee applicability

Finished product

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 width

70 mm

Package 1 length

70 mm

Package 1 weight

20 g

Total lifecycle carbon footprint

0.3 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.09789385633129927

Carbon footprint of the manufacturing phase [a1 to a3]

0.1 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.00369904118625166

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.0006697425755323586

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0.1056339273201361

Carbon footprint of the use phase [b2, b3, b4, b6]

0.1 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.04878182979342078

Carbon footprint of the end-of-life phase [c1 to c4]

0 kg CO2 eq.

Pvc free

No

Halogen-free status

Halogen free product

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

0.25667839720664015

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Halogen-free status

Halogen free product

Pvc free

No

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
