Specifications
Design
Range of product
Metal Plate
Product brand
Clipsal
Surface treatment
stainless steel
Physical

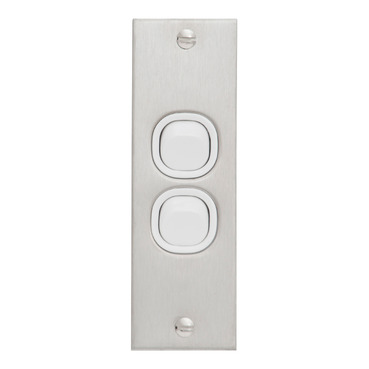

Device presentation
basic element with full cover plate and grid
Device mounting
flush
Number of rocker
2
Local signalling
without
[ue] rated operational voltage
250 V AC
Rated current
10 A
Marking
without marking
Fixing mode
by screws
Actuator
rocker
Switch function
- 2-way
- 1-way
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope
Eu rohs directive
Compliant By Exemption
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Warranty duration(in months) bmecat
18
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.0 cm
Package 1 width
5.5 cm
Package 1 length
11.7 cm
Package 1 weight
95.0 g
Sustainable packaging
No
China rohs label
5
Warranty (in months)
18
