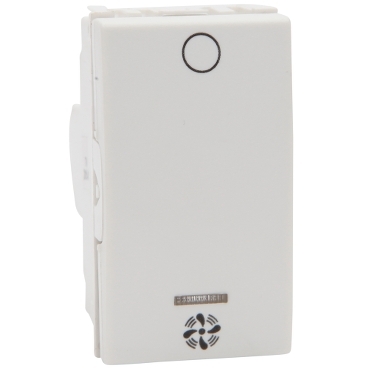

Modena and Strato 800 Series, 2-Way Standard Printed Switch Module, 16A/16AX, 1P, Fan Legend

Home ProductsSwitches and SocketsModena and Strato 800 Series2-Way Standard Printed Switch Module

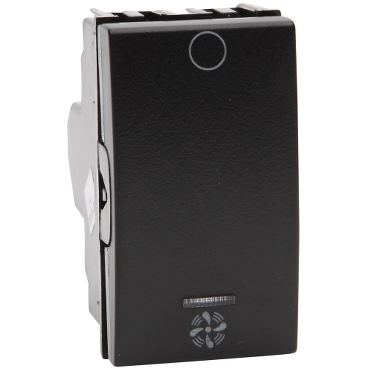

Modena and Strato 800 Series, 2-Way Standard Printed Switch Module, 16A/16AX, 1P, Fan Legend BK

Item Number: PDL881M16SFBK

Where To Buy

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

Modena 800 Series

Product or component type

switch module

Colour tint

white

Surface finish

matt

Sustainable offer status

Green Premium product

Physical

Control type

rocker

Quantity per set

set of 10

Type of packing

carton

Installation direction

horizontal|vertical

Width

25 mm

Height

45 mm

Rated current

16 A|16 AX

[ue] rated operational voltage

250 V

Marking

fan

Mounting mode

front

Connector type

#1 Square Head/#2 Phillips Screw

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Material

Material

PC (polycarbonate)

Others

Package 1 bare product quantity

1

Network type

AC

Network number of phases

1 phase

Cable composition

3 x 2.5 mm²|9 x 1 mm²|2 x 4 mm²|6 x 1.5 mm²

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.5 cm

Package 1 width

4.5 cm

Package 1 length

4 cm

Package 1 weight

0.025 kg
Show all specifications
