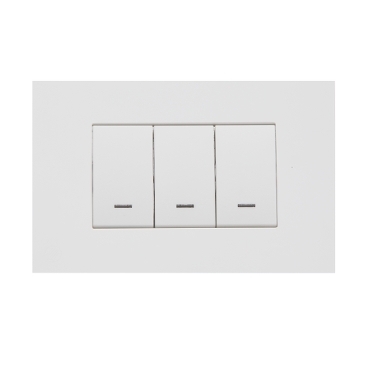

Modena and Strato 800 Series 2-Way Switch 16A/16AX, 250VAC, 50 Hz, 3-Gang, 1-Pole

Home ProductsSwitches and SocketsModena and Strato 800 Series2-Way Switch

Modena and Strato 800 Series 2-Way Switch 16A/16AX, 250VAC, 50 Hz, 3-Gang, 1-Pole | White

Item Number: PDLS883WH

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width124 mm

Height icon

Height85 mm

Depth icon

Depth7.5 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

Strato 800 Series

Range

Strato 800 Series

Product or component type

switch module

Colour tint

white

Surface finish

brushed finish

Physical

Control type

rocker

Type of packing

carton

Width

124 mm

Height

85 mm

Depth

7.5 mm

Rated current

  • 16 AX
  • 16 A

[ue] rated operational voltage

250 V

Number of gangs

3 gangs

Mounting mode

surface mounted

Fixing center

84 mm

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP111024EN

Eu rohs directive

Compliant

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Material

Material

metal and plastic

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Outside of Europe

Weee label

N/A

Number of ways

2 ways

Network frequency

50 Hz

Network number of phases

1 phase

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4 cm

Package 1 width

8.5 cm

Package 1 length

12.5 cm

Package 1 weight

0.159 kg

Sustainable packaging

No

End of life manual availability

ENVEOLI110713EN

Warranty (in months)

18
Show all specifications
