Modena and Strato 800 Series, Dimmer Control Module, 25-400W, Electronic Trailing Edge Control

Modena and Strato 800 Series, Dimmer Control Module, 25-400W, Electronic Trailing Edge Control White

Item Number: PDL824MWH

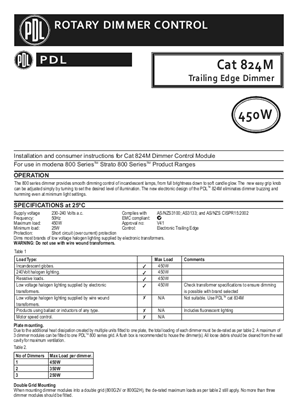

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Modena 800 Series

Product or component type

dimmer

Colour tint

white

Surface finish

matt

Physical

Control type

rotary knob

Installation direction

<ul><li>vertical</li><li>horizontal</li></ul>

Width

25 mm

Height

45 mm

Rated current

16 AX

[ue] rated operational voltage

230/240 V

Number of gangs

1 gang

Mounting mode

front

Quantity per set

set of 5

Type of packing

carton

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP1708008EN

Circularity profile

ENVEOLI1708008EN

Material

Material

PC (polycarbonate)

Others

Package 1 bare product quantity

1

Network frequency

50 Hz

Nominal power

0.45 kW

Network number of phases

1 phase

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3 cm

Package 1 width

7.5 cm

Package 1 length

10.5 cm

Package 1 weight

0.044 kg
