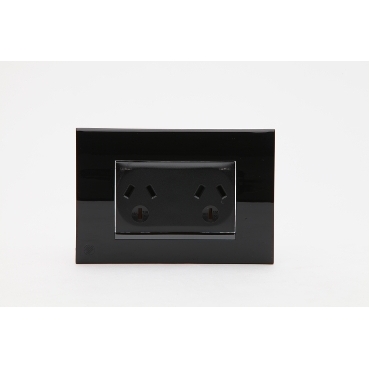

Modena and Strato 800 Series Fully Assembled Switch Socket Module 2 Gang

Modena and Strato 800 Series Fully Assembled Switch Socket Module 2 Gang | WH

Item Number: PDL895AWH

Datasheet

Product Dimensions

Width icon

Width124 mm

Height icon

Height85 mm

Depth icon

Depth9 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Modena 800 Series

Product or component type

switched socket

Colour tint

white

Surface finish

glossy and matt

Sustainable offer status

Green Premium product

Physical

Quantity per set

set of 10

Type of packing

carton

Installation direction

horizontal

Width

124 mm

Height

85 mm

Depth

9 mm

Rated current

10 A

[ue] rated operational voltage

250 V

Number of gangs

2 gangs

Mounting mode

surface mounted

Fixing center

84 mm

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Material

Material

PC (polycarbonate)

Others

Package 1 bare product quantity

1

Network frequency

50 Hz

Network number of phases

1 phase

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.5 cm

Package 1 width

9 cm

Package 1 length

12.5 cm

Package 1 weight

114 g
