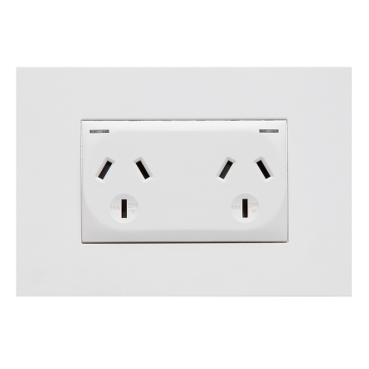

Modena and Strato 800 Series Fully Assembled Switch Socket Outlet Double, 10A

Modena and Strato 800 Series Fully Assembled Switch Socket Outlet Double, 10A | WH

Item Number: PDLS895WH

Datasheet

Product Dimensions

Width icon

Width124 mm

Height icon

Height85 mm

Depth icon

Depth7.5 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Strato 800 Series

Product or component type

switched socket

Colour tint

white

Surface finish

brushed finish

Surface treatment

aluminium-coated

Sustainable offer status

Green Premium product

Physical

Quantity per set

set of 1

Type of packing

carton

Width

124 mm

Height

85 mm

Depth

7.5 mm

Rated current

10 A

[ue] rated operational voltage

230/240 V

Number of gangs

2 gangs

Mounting mode

surface mounted

Fixing center

84 mm

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP111024EN

Circularity profile

ENVEOLI110713EN

Material

Material

metal and plastic

Others

Package 1 bare product quantity

1

Network frequency

50 Hz

Network number of phases

1 phase

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.5 cm

Package 1 width

8.5 cm

Package 1 length

12.5 cm

Package 1 weight

0.146 kg
