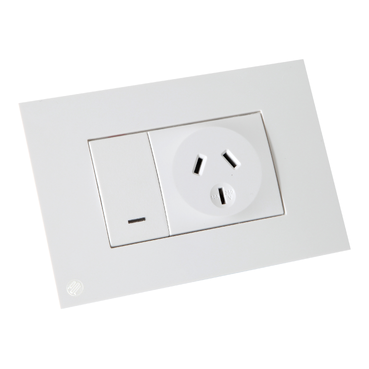

Modena and Strato 800 Series Fully Assembled Switch Socket Outlet Single, 10A | White
Item Number: PDLS894WH
Specifications
Design
Range of product
Strato 800 Series
Product or component type
switched socket
Colour tint
white
Surface finish
brushed finish
Surface treatment
aluminium-coated
Sustainable offer status
Green Premium product
Physical
Control type
rocker
Quantity per set
set of 1
Type of packing
carton
Width
124 mm
Height
85 mm
Depth
7.5 mm
Rated current
10 A
[ue] rated operational voltage
230/240 V
Number of gangs
1 gang
Mounting mode
surface mounted
Fixing center
84 mm
Reach free of svhc
Yes
Eu rohs directive
Compliant
Toxic heavy metal free
Yes
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental disclosure
ENVPEP111024EN
Circularity profile
ENVEOLI110713EN
Material
Material
metal and plastic
Others
Package 1 bare product quantity
1
Network frequency
50 Hz
Network number of phases
1 phase
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.5 cm
Package 1 width
8.5 cm
Package 1 length
12.5 cm
Package 1 weight
0.137 kg
