Modena and Strato 800 Series Half Standard Printed Switch 1 Way, 16A/16AX, 1P, ON/OFF Legend

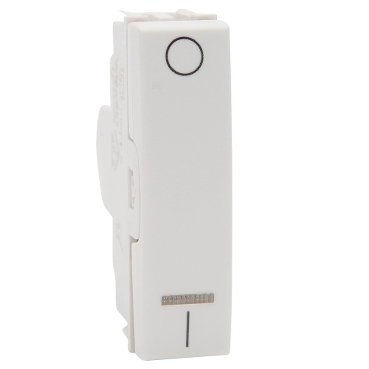

Modena and Strato 800 Series Half Standard Printed Switch 1 Way, 16A/16AX, 1P, ON/OFF Legend | White

Item Number: PDL860M16IOWH

Datasheet

Product Dimensions

Width icon

Width12.4 mm

Height icon

Height45.5 mm

Depth icon

Depth21.45 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Modena 800 Series

Product or component type

switch module

Colour tint

white

Surface finish

matt

Sustainable offer status

Green Premium product

Physical

Control type

rocker

Quantity per set

set of 20

Type of packing

carton

Installation direction

vertical|horizontal

Width

12.4 mm

Height

45.5 mm

Depth

21.45 mm

Rated current

16 A|16 AX

[ue] rated operational voltage

250 V

Marking

ON-OFF

Mounting mode

front

Connector type

#1 Square Head/#2 Phillips Screw

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Material

Material

PC (polycarbonate)

Others

Package 1 bare product quantity

1

Network type

AC

Network number of phases

1 phase

Cable composition

2 x 4 mm²|9 x 1 mm²|6 x 1.5 mm²|3 x 2.5 mm²

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.2 cm

Package 1 width

1.3 cm

Package 1 length

4.6 cm

Package 1 weight

0.016 kg
