Modena and Strato 800 Series Half Standard Printed Switch Module 16A/16AX, 1P, Light Legend

Home ProductsSwitches and SocketsModena and Strato 800 SeriesHalf Standard Printed Switch Module

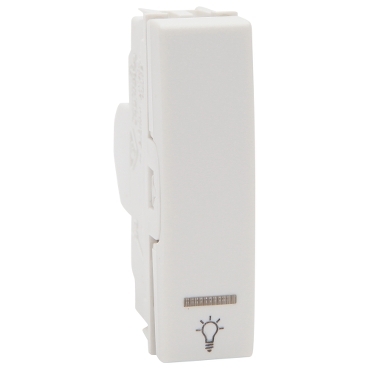

Modena and Strato 800 Series Half Standard Printed Switch Module 16A/16AX, 1P, Light Legend | White

Item Number: PDL861M16LWH

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

Modena 800 Series

Product or component type

switch module

Colour tint

white

Surface finish

matt

Physical

Control type

rocker

Quantity per set

set of 20

Type of packing

carton

Installation direction

<ul><li>vertical</li><li>horizontal</li></ul>

Length

44.8 mm

Width

12.3 mm

Rated current

<ul><li>16 A</li><li>16 AX</li></ul>

[ue] rated operational voltage

250 V

Marking

light

Mounting mode

front

Connector type

#1 Square Head/#2 Phillips Screw

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Material

Material

PC (polycarbonate)

Others

Package 1 bare product quantity

1

Network type

AC

Network number of phases

1 phase

Cable composition

<ul><li>2 x 4 mm²</li><li>9 x 1 mm²</li><li>6 x 1.5 mm²</li><li>3 x 2.5 mm²</li></ul>

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.2 cm

Package 1 width

1.3 cm

Package 1 length

4.6 cm

Package 1 weight

0.018 kg
Show all specifications
