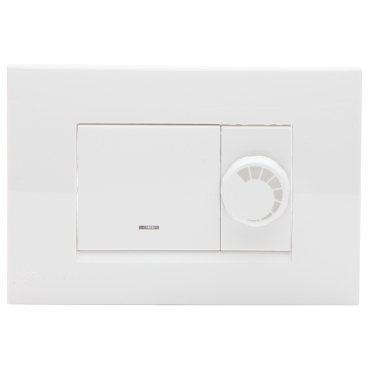

Modena and Strato 800 Series Light Dimmer Switch 450W, Leading Edge Phase Control | White
Item Number: PDL834LWH
Specifications
Design
| Range of product | Modena 800 Series |
|---|---|
| Product or component type | dimmer |
| Colour tint | white |
| Surface finish | glossy and matt |
Physical
| Control type | rotary knob |
|---|---|
| Installation direction | horizontal |
| Width | 124 mm |
| Height | 85 mm |
| Depth | 9 mm |
| Rated current | 16 AX |
| [ue] rated operational voltage | 230/240 V |
| Number of gangs | 1 gang |
| Mounting mode | surface mounted |
| Fixing center | 84 mm |
Material
| Material | PC (polycarbonate) |
|---|
Documents & downloads
Filter items
-
All
-
Product Brochures
-
Quick Start Guide
-
Operating Manuals
-
Declaration of Conformity (Sustainability)
ZIP
Modena 800 Series and Strato 800 Series installation instructions
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
DOWNLOAD (ZIP) 176.7 KB
ZIP
Installation instructions for 800 Series products, Strato 800 Series and Modena 800 Series
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
DOWNLOAD (ZIP) 551.4 KB
ZIP
Modena 800 Series wiring diagram
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
DOWNLOAD (ZIP) 1.4 MB
