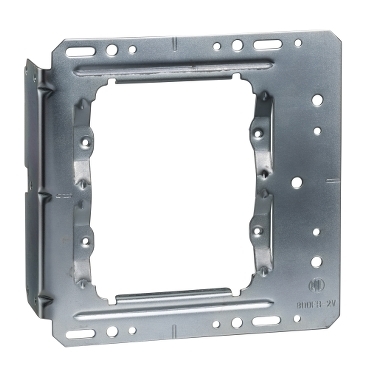

Modena and Strato 800 Series, Mounting Bracket, Double, Vertical, Metal, Galvanized, Steel
Item Number: PDL800FB2V
Datasheet
Close
Specifications
Design
Range of product
Modena 800 Series
Product or component type
mounting bracket
Surface treatment
galvanised
Physical
Installation direction
vertical
Length
147.5 mm
Width
143 mm
Height
30 mm
Fixing center
84 mm
Quantity per set
set of 5
Type of packing
carton
Ambient air temperature for operation
-10...40 °C
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental disclosure
ENVPEP110719EN
Circularity profile
N/A
Material
Material
galvanised steel
Others
Package 1 bare product quantity
1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.9 cm
Package 1 width
14.7 cm
Package 1 length
14.9 cm
Package 1 weight
162 g
