Modena and Strato 800 Series, Permanent Connection Unit, 16A/16AX, 250VAC, 50Hz

Home ProductsSwitches and SocketsModena and Strato 800 SeriesPermanent Connection Unit

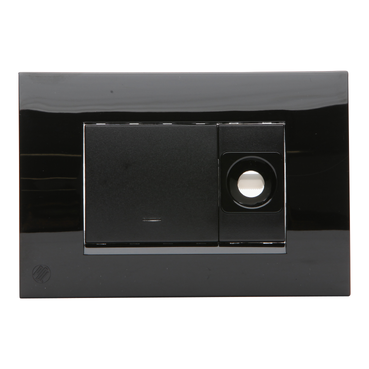

Modena and Strato 800 Series, Permanent Connection Unit, 16A/16AX, 250VAC, 50Hz Black

Item Number: PDL851BK

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width124 mm

Height icon

Height85 mm

Depth icon

Depth9 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

Modena 800 Series

Product or component type

connection unit

Colour tint

white

Surface finish

glossy and matt

Physical

Installation direction

horizontal

Width

124 mm

Height

85 mm

Depth

9 mm

Rated current

<ul><li>16 AX</li><li>16 A</li></ul>

Load type

<ul><li>resistive</li><li>fluorescent</li></ul>

[ue] rated operational voltage

250 V

Number of gangs

1 gang

Mounting mode

front

Fixing center

84 mm

Quantity per set

<ul><li>set of 10</li><li>set of 1</li></ul>

Type of packing

carton

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Material

Material

PC (polycarbonate)

Others

Package 1 bare product quantity

1

Network frequency

50 Hz

Network number of phases

1 phase

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.5 cm

Package 1 width

8.5 cm

Package 1 length

12.5 cm

Package 1 weight

0.104 kg
Show all specifications
