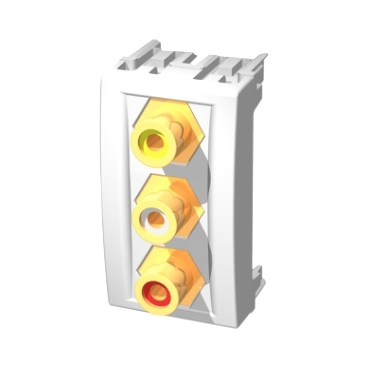

Modena and Strato 800 Series RCA Socket Module Red/White/Yellow Socket | White
Item Number: PDL840MFRWYWH
Datasheet
Close
Specifications
Design
Range of product
Modena 800 Series
Product or component type
audio/video socket
Colour tint
white
Surface finish
matt
Physical
Connector type
RCA
Installation direction
- horizontal
- vertical
Width
124 mm
Depth
85 mm
Number of gangs
1 gang
Mounting mode
front
Quantity per set
set of 10
Type of packing
carton
China rohs regulation
X
Environmental disclosure
ENVPEP1308010EN
Circularity profile
ENVEOLI1308010EN
Material
Material
PC (polycarbonate)
Others
Package 1 bare product quantity
1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
2.5 cm
Package 1 width
2.5 cm
Package 1 length
4.5 cm
Package 1 weight
0.03 kg
Documents & downloads
hide showFilter items
-
All
-
Product Brochures
-
Environmental Disclosure
-
End of Life Manual
-
Quick Start Guide
ZIP
Modena 800 Series and Strato 800 Series installation instructions
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
DOWNLOAD (ZIP) 176.7 KB
ZIP
Installation instructions for 800 Series products, Strato 800 Series and Modena 800 Series
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
DOWNLOAD (ZIP) 551.4 KB
ZIP
Modena 800 Series wiring diagram
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
DOWNLOAD (ZIP) 1.4 MB
