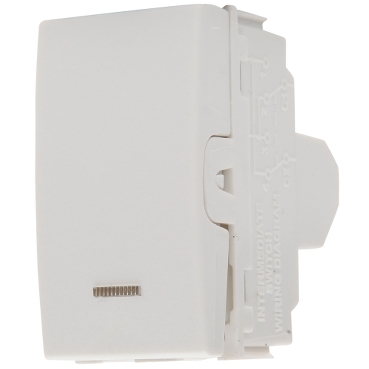

Modena and Strato 800 Series Standard Switch Module 10A/10AX, 2 Pole

Modena and Strato 800 Series Standard Switch Module 10A/10AX, 2 Pole | White

Item Number: PDL882M10NBLWH

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Modena 800 Series

Product or component type

switch module

Colour tint

white

Surface finish

matt

Sustainable offer status

Green Premium product

Physical

Control type

rocker

Quantity per set

set of 10

Type of packing

carton

Installation direction

horizontal|vertical

Width

24.8 mm

Height

44.6 mm

Rated current

10 A|10 AX

[ue] rated operational voltage

250 V

Mounting mode

front

Connector type

#1 Square Head/#2 Phillips Screw

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Material

Material

PC (polycarbonate)

Others

Package 1 bare product quantity

1

Network type

AC

Network number of phases

1 phase

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.5 cm

Package 1 width

4 cm

Package 1 length

4.5 cm

Package 1 weight

0.034 kg
