Modena and Strato 800 Series Switch Module 16A/16AX, 1P, Unprinted Legend

Modena and Strato 800 Series Switch Module 16A/16AX, 1P, Unprinted Legend | White

Item Number: PDL881M16SWH

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Modena 800 Series

Product or component type

switch module

Colour tint

white

Surface finish

matt

Sustainable offer status

Green Premium product

Physical

Control type

rocker

Quantity per set

set of 10

Type of packing

carton

Installation direction

horizontal|vertical

Width

25 mm

Height

45 mm

Rated current

16 A|16 AX

[ue] rated operational voltage

250 V

Mounting mode

front

Connector type

#1 Square Head/#2 Phillips Screw

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

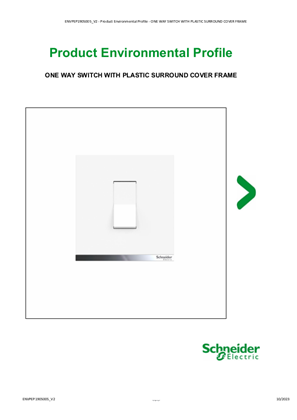

Environmental disclosure

ENVPEP1905005EN

Circularity profile

N/A

Material

Material

PC (polycarbonate)

Others

Package 1 bare product quantity

1

Network type

AC

Network number of phases

1 phase

Cable composition

2 x 4 mm²|6 x 1.5 mm²|3 x 2.5 mm²|9 x 1 mm²

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.5 cm

Package 1 width

4.5 cm

Package 1 length

4.5 cm

Package 1 weight

26 g
