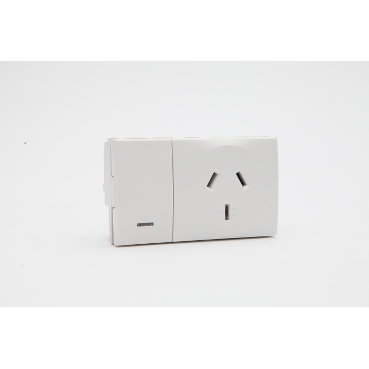

Modena and Strato 800 Series Switched Socket Module Single, Horizontal, 10A, 250V, 1-Gang

Modena and Strato 800 Series Switched Socket Module Single, Horizontal, 10A, 250V, 1-Gang | White

Item Number: PDL894MWH

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Modena 800 Series

Product or component type

switched socket

Colour tint

white

Surface finish

matt

Sustainable offer status

Green Premium product

Physical

Control type

rocker

Quantity per set

set of 10

Type of packing

carton

Installation direction

horizontal

Width

74.8 mm

Height

44.75 mm

Rated current

10 A

[ue] rated operational voltage

250 V

Number of gangs

1 gang

Mounting mode

front

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Material

Material

PC (polycarbonate)

Others

Package 1 bare product quantity

1

Network frequency

50 Hz

Network number of phases

1 phase

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3 cm

Package 1 width

4.5 cm

Package 1 length

7.5 cm

Package 1 weight

0.053 kg
Show all specifications
