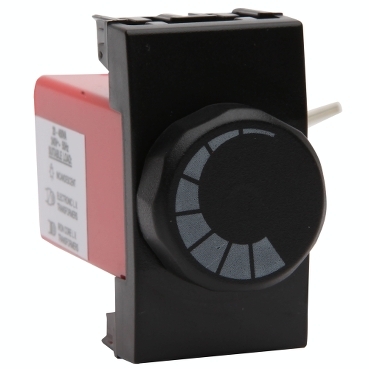

Modena and Strato 800 Series Universal Dimmer Control Module 20-450W, Lead/Trail Edge Phase | Black
Item Number: PDL854MBK
Datasheet
Close
Specifications
Design
| Range of product | Modena 800 Series |
|---|---|
| Product or component type | dimmer |
| Colour tint | white |
| Surface finish | matt |
Physical
| Control type | rotary knob |
|---|---|
| Installation direction |
|
| Width | 124 mm |
| Height | 85 mm |
| Rated current | 16 AX |
| [ue] rated operational voltage | 230/240 V |
| Number of gangs | 1 gang |
| Mounting mode | front |
| Ambient air temperature for operation | -10...40 °C |
| Relative humidity | 10...90 % |
| Quantity per set | set of 8 |
| Type of packing | carton |
Material
| Material | PC (polycarbonate) |
|---|
