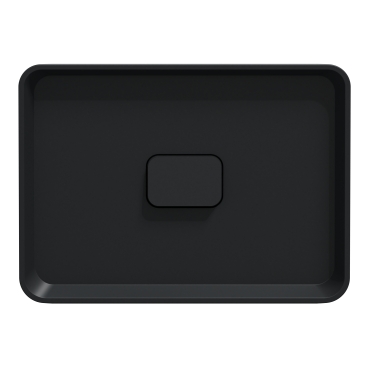

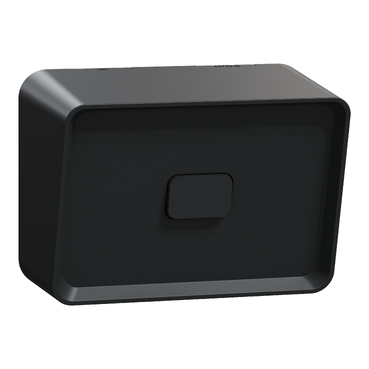

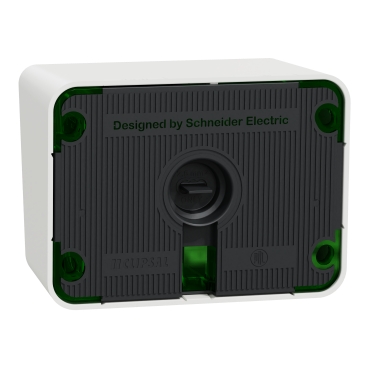

Iconic Outdoor Switch Horizontal 1-Gang 20A 16AX 250V

Iconic Outdoor Switch Horizontal 1-Gang 20A 16AX 250V | Black

Item Number: PDLO381-BK

Give yourself the option of two-way switching with the PDL Iconic Outdoor 1 Gang switch, rated 20A/16AX, 250V. The switch has an IP66 rating to prevent ingress of dust and water. The matt Black finish is robust and designed for New Zealand winters and summers.

Datasheet

Product Dimensions

Width icon

Width115.5 mm

Height icon

Height85 mm

Depth icon

Depth70 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product brand

PDL

Range

PDL Iconic

Product or component type

switch

Device application

lighting

Colour tint

black

Surface treatment

untreated

Surface finish

matt

Physical

Number of rocker

1

Switch function

1-pole 1/2-way

Device presentation

complete product

Device mounting

surface

Actuator

rocker

Local signalling

without

Clamping connection capacity

  • 4 x 1.5 mm²
  • 3 x 2.5 mm²

Fixing mode

  • by screws
  • by clipping locks

Ip degree of protection

IP56

Width

115.5 mm

Height

85 mm

Depth

70 mm

Screwdriver shape

  • square drive no 1 (SQ1)
  • Philips No 2

Net weight

190 g

Wire stripping length

10 mm

Electrical durability

12000 cycles

Ambient air temperature for storage

0...60 °C

Relative humidity

10...95 %

Standards

AS/NZS 3133

Ambient air temperature for operation

0...45 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2106012

Circularity profile

ENVEOLI2106012

Material

Material

  • PC (polycarbonate)
  • TPE (thermoplastic elastomer)
  • ABS (acrylonitrile butadiene-styrene)
  • POM (polyoxymethylene)

Others

Package 1 bare product quantity

1

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Network type

AC

Main colour tint

black

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8.7 cm

Package 1 width

11.9 cm

Package 1 length

8.9 cm

Package 1 weight

222.0 g

Unit type of package 2

BB2

Number of units in package 2

30

Package 2 height

30.9 cm

Package 2 width

41.3 cm

Package 2 length

45.9 cm

Package 2 weight

7.66 kg

Unit type of package 3

P06

Number of units in package 3

360

Package 3 height

105.0 cm

Package 3 width

60.0 cm

Package 3 length

80.0 cm

Package 3 weight

100.42 kg

Green premium status for reporting

Green Premium product

Sustainable packaging

Yes

Halogen content performance

Halogen free plastic parts product

Halogen content performance

Halogen free plastic parts product

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Recycled metal content at cr level

0

Removable battery

N/A

Global warming ; total life cycle​

8 kg CO2 eq.

Carbon footprint (kg.eq.co2 per cr, total life cycle)

7.785703488402163

Minimum percentage of recycled plastic content

0
