Iconic Styl Cover Plate Double Switched Socket Vertical

Home ProductsSwitches and SocketsPDL Iconic StylStyl Cover Plate Double Switched Socket

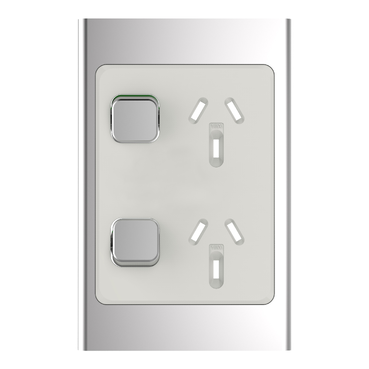

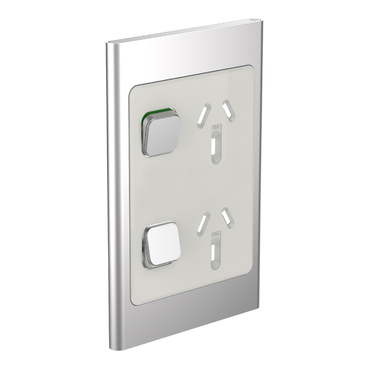

Iconic Styl Cover Plate Double Switched Socket Vertical | Silver Shadow

Item Number: PDLS392C-SH

Datasheet

Product Dimensions

Width icon

Width82 mm

Height icon

Height126.0 mm

Depth icon

Depth8.5 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

PDL Iconic

Aesthetic name

Iconic Styl

Product or component type

cover frame

Colour tint

silver shadow (SH)

Colour tint

cover frame: silver shadow (SH)

Product destination

switched socket

Surface finish

satin

Surface treatment

metallic

Physical

Type of packing

polybag

Quantity per set

set of 10

Range compatibility

PDL Iconic switched socket

Device mounting

flush

Number of rocker

2

Number of power socket outlets

2

[in] rated current

10 A

Installation direction

vertical

Fixing mode

clip-on

Height

126.0 mm

Width

82 mm

Depth

8.5 mm

Net weight

0.03 kg

Ambient air temperature for storage

0...45 °C

Ambient air temperature for operation

0...45 °C

Relative humidity

10...95 %

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1607004EN

Circularity profile

N/A

Material

Material

  • PC (polycarbonate): window
  • ABS (acrylonitrile butadiene-styrene): skin
  • aluminium

Others

Package 1 bare product quantity

1

Packaging without single use plastic

No

Packaging made with recycled cardboard

Yes

Main colour tint

silver shadow

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1 cm

Package 1 width

8.17 cm

Package 1 length

12.62 cm

Package 1 weight

52 g

Green premium status for reporting

Green Premium product

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Recycled metal content at cr level

0

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

0.56183697

Global warming ; total life cycle​

1 kg CO2 eq.

Minimum percentage of recycled plastic content

0
Show all specifications
