Iconic Styl Cover Plate Quad Socket + 2 Switches Silver Shadow

Home ProductsSwitches and SocketsPDL Iconic StylStyl Cover Plate Quad Socket + 2 Switches

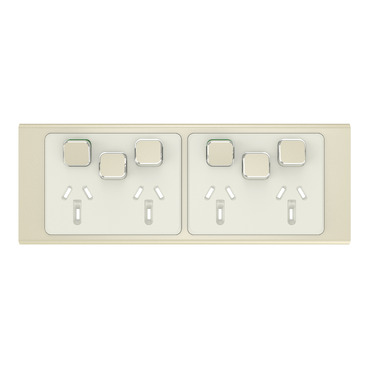

Iconic Styl Cover Plate Quad Socket + 2 Switches Silver Shadow | Crowne

Item Number: PDLS395H4XXC-CE

Datasheet

Product Dimensions

Width icon

Width222.0 mm

Height icon

Height82.0 mm

Depth icon

Depth9.0 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

PDL Iconic

Aesthetic name

Iconic Styl

Product or component type

cover frame

Colour tint

silver shadow (SH)

Product destination

switched socket

Surface finish

satin

Surface treatment

metallic

Physical

Type of packing

polybag

Quantity per set

set of 5

Range compatibility

PDL Iconic switched socket

Device mounting

flush

Number of rocker

6

Number of power socket outlets

4

[in] rated current

10 A

Installation direction

horizontal

Fixing mode

clip-on

Height

82.0 mm

Width

222.0 mm

Depth

9.0 mm

Net weight

0.06 kg

Ambient air temperature for storage

0...45 °C

Ambient air temperature for operation

0...45 °C

Relative humidity

10...95 %

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP1607004EN

Circularity profile

N/A

Material

Material

anodised aluminium: cover frame

Others

Package 1 bare product quantity

1

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1.0 cm

Package 1 width

8.17 cm

Package 1 length

22.2 cm

Package 1 weight

62.0 g

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Recycled metal content at cr level

0

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

0.669882541

Global warming ; total life cycle​

1 kg CO2 eq.

Minimum percentage of recycled plastic content

0
