Iconic, Styl Cover Plate Quad Socket + 2 Switches

Home ProductsSwitches and SocketsPDL Iconic StylStyl Cover Plate Quad Socket + 2 Switches

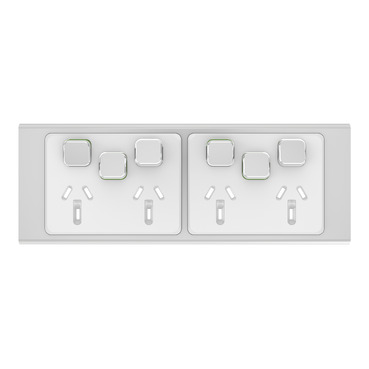

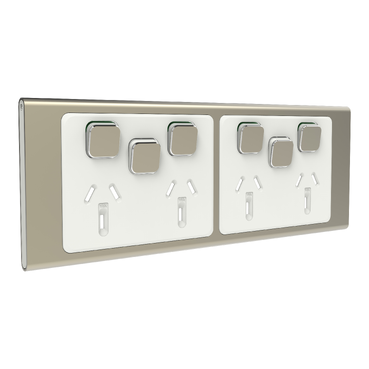

Iconic, Styl Cover Plate Quad Socket + 2 Switches Silver

Item Number: PDLS395H4XXC-SV

Build this product

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width222.0 mm

Height icon

Height82.0 mm

Depth icon

Depth9.0 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

PDL Iconic

Aesthetic name

Iconic Styl

Product or component type

cover frame

Colour tint

silver shadow (SH)

Product destination

switched socket

Surface finish

satin

Surface treatment

metallic

Physical

Type of packing

polybag

Quantity per set

set of 5

Range compatibility

PDL Iconic switched socket

Device mounting

flush

Number of rocker

6

Number of power socket outlets

4

Installation direction

horizontal

Fixing mode

clip-on

Height

82.0 mm

Width

222.0 mm

Depth

9.0 mm

Net weight

0.06 kg

Ambient air temperature for storage

0...45 °C

Ambient air temperature for operation

0...45 °C

Relative humidity

10...95 %

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1607004EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Material

Material

anodised aluminium: cover frame

Others

Package 1 bare product quantity

1

Legacy weee scope

In

Average percentage of recycled plastic content

0 %

Outside of Europe

Weee label

N/A

Weee applicability

Component

Weee exclusion rationale

Component not in scope – non independent function

Main colour tint

silver shadow

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1.0 cm

Package 1 width

8.17 cm

Package 1 length

22.2 cm

Package 1 weight

62.0 g

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

10 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.4940304283314765

Carbon footprint of the manufacturing phase [a1 to a3]

0.5 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.017776285867480507

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.012606933220396853

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

9.4106

Carbon footprint of the use phase [b2, b3, b4, b6]

9 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.14546889402601357

Carbon footprint of the end-of-life phase [c1 to c4]

0.1 kg CO2 eq.

Pvc free

No

Halogen-free status

Halogen free product

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

10.080482541445368

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Halogen-free status

Halogen free product

Pvc free

No

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
Show all specifications
