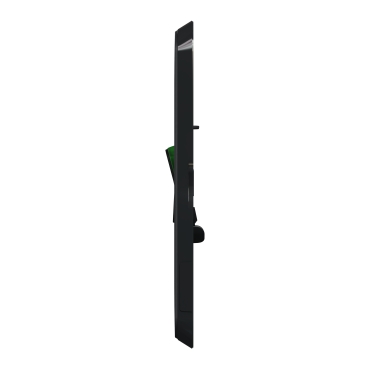

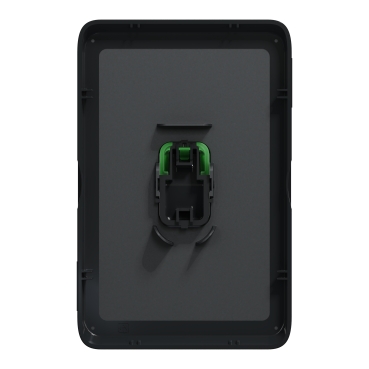

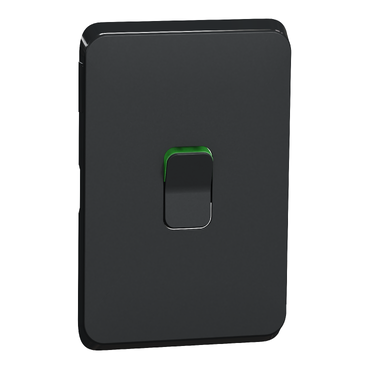

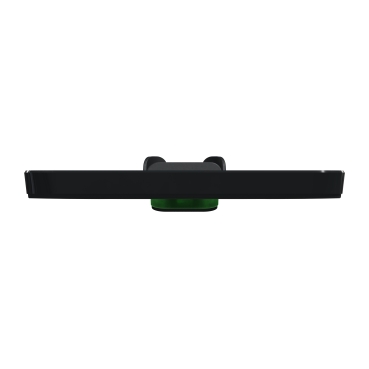

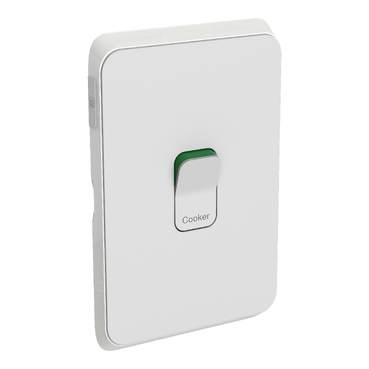

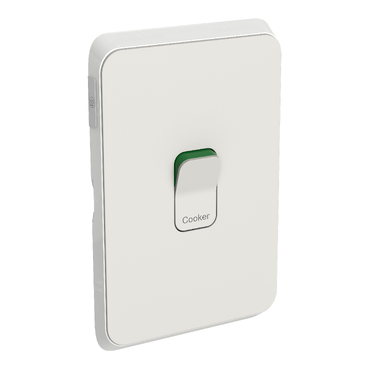

Iconic Cover Plate Cooker Switch 45A 250V

Iconic Cover Plate Cooker Switch 45A 250V | Vivid White

Item Number: PDL347VHC-VW

A clean, modern design ensures the PDL Iconic Cooker Switch Plate Skin is right for residential settings. This versatile, flush-mounted skin for switches has horizontal and vertical capacity with an easy clip-on fixing.

Datasheet

Product Dimensions

Width icon

Width78 mm

Height icon

Height120 mm

Depth icon

Depth9 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

PDL Iconic

Aesthetic name

Iconic

Product or component type

cover frame

Colour tint

vivid white (VW)

Product destination

switch

Surface finish

matt

Physical

Type of packing

polybag

Quantity per set

set of 20

Range compatibility

PDL Iconic switch

Device mounting

flush

Number of gangs

1 gang horizontal/vertical

Fixing mode

clip-on

Height

120 mm

Width

78 mm

Depth

9 mm

Net weight

0.02 kg

Ambient air temperature for operation

0...45 °C

Relative humidity

10...95 %

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1607003EN

Circularity profile

N/A

Material

Material

PC (polycarbonate): skin|ABS (acrylonitrile butadiene-styrene): skin

Others

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

0.9 cm

Package 1 width

7.8 cm

Package 1 length

2.6 cm

Package 1 weight

26 g

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

0.280918485
