Iconic Cover Plate Switched Socket + Switch 10A Horizontal 250V

Home ProductsSwitches and SocketsPDL IconicCover Plate Switched Socket + Switch

Iconic Cover Plate Switched Socket + Switch 10A Horizontal 250V | Warm Grey

Item Number: PDL394XC-WY

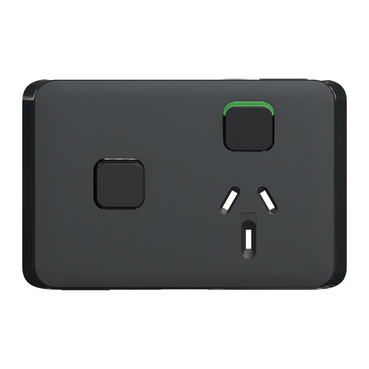

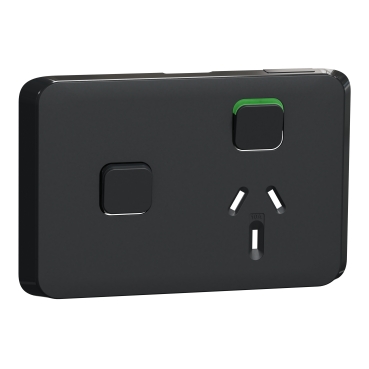

This PDL Iconic Single Power Point Skin is horizontally mounted, has an extra switch and is available in a standard white or subtle colour variants. It offers a choice of edges; solid vivid white or translucent edges that meld with its surroundings.

Datasheet

Product Dimensions

Width icon

Width78 mm

Height icon

Height120 mm

Depth icon

Depth12 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

PDL Iconic

Aesthetic name

Iconic

Product or component type

cover frame

Colour tint

vivid white (VW)

Product destination

socket

Surface finish

matt

Sustainable offer status

Green Premium product

Physical

Type of packing

polybag

Quantity per set

set of 20

Range compatibility

PDL Iconic socket

Device mounting

flush

Number of gangs

6 gangs horizontal

Fixing mode

clip-on

Height

120 mm

Width

78 mm

Depth

12 mm

Net weight

0.02 kg

Ambient air temperature for operation

0...45 °C

Relative humidity

10...95 %

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP1607004EN

Circularity profile

N/A

Material

Material

PC (polycarbonate): skin|ABS (acrylonitrile butadiene-styrene): skin

Others

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1.2 cm

Package 1 width

7.8 cm

Package 1 length

2.1 cm

Package 1 weight

21.14 g
