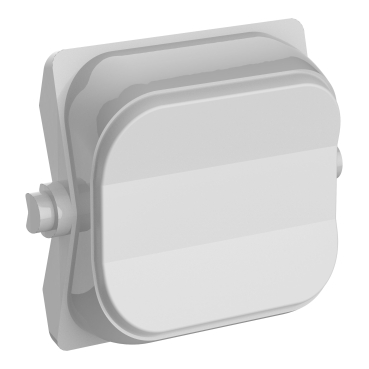

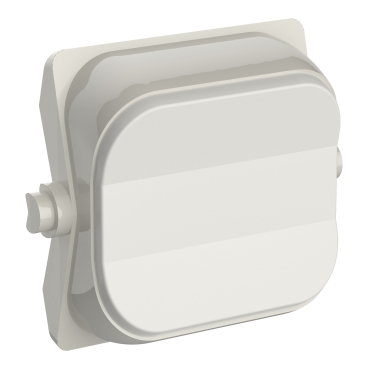

Iconic Dolly Rocker Toggle 3-Position Blank

Iconic Dolly Rocker Toggle 3-Position Blank | Warm Grey

Item Number: PDL387A3T-WY

The three-position PDL Iconic toggle can be used in a range of applications to switch between three activation positions. The toggle clicks into place within a PDL Iconic skin, activating the 3 position mechanism

Datasheet

Product Dimensions

Width icon

Width23 mm

Height icon

Height23 mm

Depth icon

Depth9 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

PDL Iconic

Product or component type

switch

Colour tint

vivid white (VW)

Surface finish

matt

Surface treatment

untreated

Sustainable offer status

Green Premium product

Physical

Provided equipment

rocker dolly

Type of packing

ziplock polybag

Quantity per set

set of 10

Sale per indivisible quantity

1

Actuator

rocker

Fixing mode

clip-in

Height

23 mm

Width

23 mm

Depth

9 mm

Net weight

0.001 kg

Ambient air temperature for operation

0...45 °C

Ambient air temperature for storage

0...60 °C

Relative humidity

10...95 %

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1607003EN

Circularity profile

N/A

Material

Material

PC (polycarbonate): dolly|ABS (acrylonitrile butadiene-styrene): dolly

Others

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

0.9 cm

Package 1 width

9.8 cm

Package 1 length

2 cm

Package 1 weight

20 g
