Iconic Double Switched Socket RCD 30mA Horizontal 10A

Home ProductsSwitches and SocketsPDL IconicDouble Switched Socket RCD

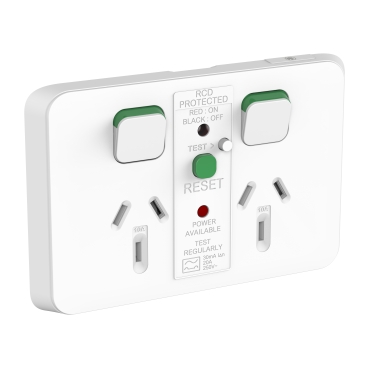

Iconic Double Switched Socket RCD 30mA Horizontal 10A | Vivid White

Item Number: PDL395RCD30-VW

Build this product

This 30mA RCD protected twin 10A Power Point has large in line floating wrapper wiring terminals. It has slim and modern PDL Iconic styling, simple to use test button, LED indicators and shuttered sockets.

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width120 mm

Height icon

Height78 mm

Depth icon

Depth42 mm

See full specifications View cut out specs

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

PDL Iconic

Product or component type

switched socket

Surface finish

matt

Surface treatment

untreated

Physical

Device presentation

complete product

Socket number

2

Connections - terminals

screw terminals

Installation direction

horizontal

Device mounting

flush

Number of rocker

2

Rated current

10 A

[ue] rated operational voltage

230/240 V

Fixing mode

by screws

Clamping connection capacity

  • 1 x 2.5...4 x 2.5 mm² for stranded cable(s)
  • 1 x 2.5...4 x 2.5 mm² for flexible cable(s)
  • 1 x 2.5...4 x 2.5 mm² for rigid cable(s)

Wire stripping length

16 mm

Ambient air temperature for storage

0...60 °C

Ambient air temperature for operation

0...45 °C

Height

78 mm

Width

120 mm

Depth

42 mm

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1607004EN

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Quantity per set

set of 4

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

Outside of Europe

Weee label

N/A

Weee applicability

Finished product

Main colour tint

vivid white

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

15.2 cm

Package 1 width

7.8 cm

Package 1 length

11 cm

Package 1 weight

110 g

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

13 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.876505599

Carbon footprint of the manufacturing phase [a1 to a3]

0.9 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.031538572

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.02236714

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

11.76325

Carbon footprint of the use phase [b2, b3, b4, b6]

12 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.258089973

Carbon footprint of the end-of-life phase [c1 to c4]

0.3 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

12.95175128

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
