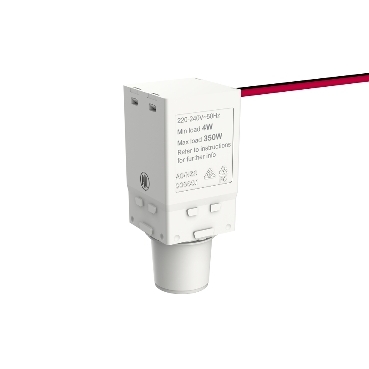

Iconic LED Dimmer Mechanism Rotary, 350W | Vivid White
Item Number: PDL354RDMLED-VW
The PDL Iconic LED Dimmer Mechanism adds a new level of style and convenience to your lighting while saving on energy. This rotary led dimmer switch has an adjustable 315° brightness setting to adjust the lighting to set the mood in any room.
Specifications
Design
| Range | PDL Iconic |
|---|---|
| Product or component type | dimmer |
| Surface finish | glossy |
Physical
| Device presentation | mechanism |
|---|---|
| Type of packing | box |
| Load type |
|
| Control type | rotary knob |
| Fixing mode | clip-in |
| Ambient air temperature for storage | 0...60 °C |
| Dimmer control | 315° rotary setting |
| [ie] rated operational current | 1.5 A |
| [ue] rated operational voltage | 220...240 V AC 50 Hz 1 W |
| Function available | brightness adjustment |
| Protection type | short-circuit |
| Ambient air temperature for operation | 0...45 °C |
| Relative humidity | 0...90 % |
| Connections - terminals | flying leads |
| Height | 22.5 mm |
| Width | 22.5 mm |
| Depth | 39 mm |
| Embedding depth | 37 mm |
| Derating factor |
|
| Standards | AS/NZS 60669.2.1 |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1708008EN |
| Eu rohs directive | Compliant By Exemption |
Material
| Material |
|
|---|
Documents & downloads
Filter items
-
All
-
Product Brochures
-
End of Life Manual
-
Environmental Disclosure
-
Installation Instruction
-

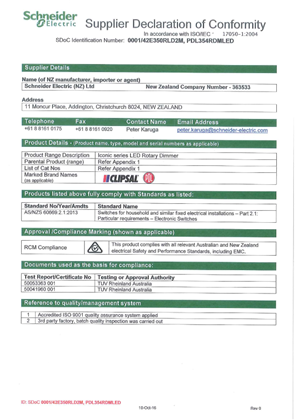

Declaration of Conformity
-
