Iconic Module Switch Universal Rocker 20A, 16AX, White LED, 1/2-Way, 250V
Item Number: PDL381M20L
A soft LED light helps to illuminate the PDL Iconic Universal Rocker Switch which adds a new element of style to your light switches. With M80 motor rating, these switches are perfect for inductive, light, and fluorescent lamp load types.
Specifications
Design
| Range | PDL Iconic |
|---|---|
| Product or component type | switch |
| Device application | lighting |
| Surface treatment | untreated |
| Surface finish | matt |
Physical
| Switch function | 1/2-way |
|---|---|
| Load type |
|
| Quantity per set | set of 20 |
| Device presentation | mechanism |
| Local signalling | LED warm white optional |
| Number of terminals | 4 |
| Clamping connection capacity |
|
| Fixing mode | locking bar |
| Width | 23 mm |
| Height | 23 mm |
| Depth | 32 mm |
| Screwdriver shape |
|
| Net weight | 0.02 kg |
| Wire stripping length | 10 mm |
| Electrical durability | 20000 cycles conforming to AS/NZS 60669 |
| Ambient air temperature for storage | 0...60 °C |
| Relative humidity | 10...95 % |
| Product certifications | RCM |
| Ambient air temperature for operation | 0...45 °C |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1802001EN |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material |
|
|---|
Documents & downloads
-
All
-
Product Brochures
-

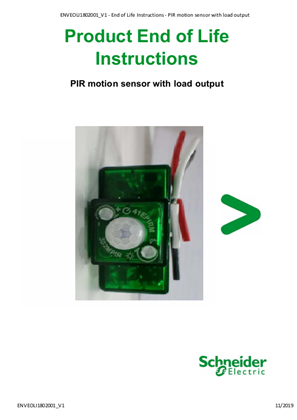

End of Life Manual
-

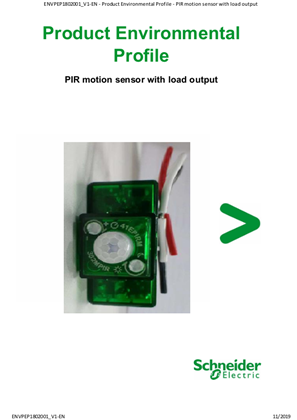

Environmental Disclosure
-
