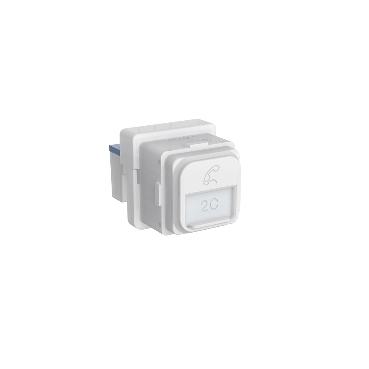

Iconic Module Telephone Socket BT 2 wire Symbol + Shutter, 300 Series

Home ProductsSwitches and SocketsPDL IconicModule Telephone Socket

Iconic Module Telephone Socket BT 2 wire Symbol + Shutter, 300 Series | Translucent

Item Number: PDL317M2-TN

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width30 mm

Height icon

Height30 mm

Depth icon

Depth53 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Iconic

Product or component type

telephone socket

Colour tint

translucent (TN)

Surface finish

glossy

Surface treatment

untreated

Physical

Device presentation

mechanism

Telephone socket type

British (1 contacts)

Device mounting

flush

Provided equipment

cable shroud

Type of cable

twisted pair

Fixing mode

clip-in

Type of packing

polybag

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-10...60 °C

Height

30 mm

Number of terminals

2

Width

30 mm

Depth

53 mm

Net weight

0.018 kg

Connections - terminals

push-in

Marking

telephone

Product certifications

Telepermit

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1607004EN

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

PC (polycarbonate)

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

Outside of Europe

Weee label

N/A

Weee applicability

Finished product

Main colour tint

translucent

Number of modules

1 module

Connection position

direct connection

Socket additional information

shuttered

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5.3 cm

Package 1 width

3 cm

Package 1 length

3 cm

Package 1 weight

20.1 g

Total lifecycle carbon footprint

0.8 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.1171953404119235

Carbon footprint of the manufacturing phase [a1 to a3]

0.1 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.010693555224391018

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.0027452167145765147

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0.6114419474342553

Carbon footprint of the use phase [b2, b3, b4, b6]

0.6 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.041500041851910405

Carbon footprint of the end-of-life phase [c1 to c4]

0 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

0.7835761016370567

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
