Iconic Pushbutton TimeClock with Wiser Room and ControlLink, 10A

Home ProductsSwitches and SocketsPDL IconicPushbutton TimeClock

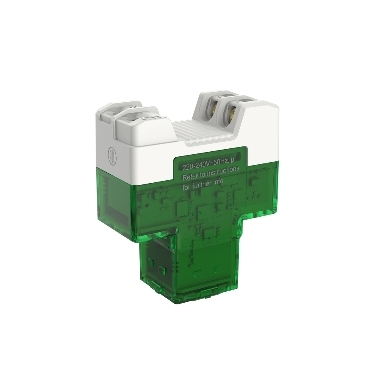

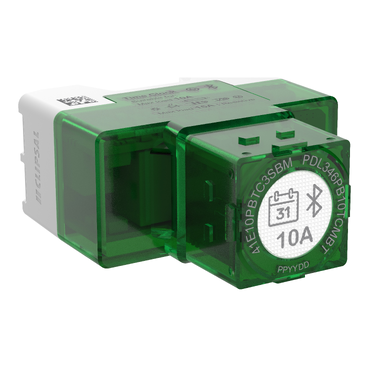

Iconic Pushbutton TimeClock with Wiser Room and ControlLink, 10A | Vivid White

Item Number: PDL346PB10TCMBT-VW

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width24 mm

Height icon

Height48 mm

Embedding depth icon

Embedding depth52 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

PDL Iconic

Product or component type

electronic time switch

Device application

residential

Colour tint

vivid white

Surface finish

matt

Physical

Device presentation

mechanism

Range compatibility

PDL Iconic plate

Number of channels

1

Device mounting

flush

Actuator

push-button

Fixing mode

clip-in

Connections - terminals

4 x screw terminals

Type of packing

box

Sale per indivisible quantity

1

Remote control type

Wiser room application

[ue] rated operational voltage

220...240 V AC 50 Hz

Supply

supercapacitor

Backup time

<= 12 h

Load type

  • LED lighting 10 A
  • incandescent lamp 10 A
  • low voltage halogen lamp with iron core transformer 10 A
  • low voltage halogen lamp with electronic transformer 10 A
  • fluorescent lamp 10 A
  • compact fluorescent lamp 10 A
  • resistive 15 A

Derating factor

  • 1 devices10 A without derating
  • 2 devices7.5 A with derating factor
  • 3 devices6.5 A with derating factor

Operating distance

30 m

Control signal type

ControlLink

Function available

  • HWS booster feature
  • auto daylight savings adjustment
  • sunrise/sunset in schedules
  • automatic with manual override

Wiring configuration

3 wires with neutral

Type of setting

adjustable in 16 schedules

Minimum interval duration

1 min

Local signalling

LED indicator (warm white)

Height

48 mm

Width

24 mm

Depth

55 mm

Embedding depth

52 mm

Ambient air temperature for storage

0...60 °C

Ambient air temperature for operation

0...45 °C

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1708008EN

Circularity profile

ENVEOLI1708008EN

Others

Package 1 bare product quantity

1

User language

English

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.9 cm

Package 1 width

6.7 cm

Package 1 length

8.7 cm

Package 1 weight

85 g
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Product Brochures

  • End of Life Manual

  • Environmental Disclosure

  • Installation Instruction

  • Certificates (MSDS)

  • Declaration of Conformity

Electric Home Design Digital Magazine
ZIP

Electric Home Design Digital Magazine

VERSION

4.0

DATE

23 Feb 2024

REVISION

4.0

DOWNLOAD (ZIP) 8.7 MB
Clipsal, SAE 3 WIRE DMR + BLE SIDE CTRL - Product End of Life Instructions
ZIP

Clipsal, SAE 3 WIRE DMR + BLE SIDE CTRL - Product End of Life Instructions

VERSION

1.0

DATE

31 Jan 2025

REVISION

1.0

DOWNLOAD (ZIP) 365 KB
CLIPSAL - SAE 3 WIRE DMR + BLE SIDE CTRL - Product Environmental Profile
ZIP

CLIPSAL - SAE 3 WIRE DMR + BLE SIDE CTRL - Product Environmental Profile

VERSION

1.0

DATE

22 Jan 2025

REVISION

1.0

DOWNLOAD (ZIP) 407.6 KB
PDL Iconic- Pushbutton Electronic Switch, Timer, Time clock-Instruction Sheet (EN)
ZIP

PDL Iconic- Pushbutton Electronic Switch, Timer, Time clock-Instruction Sheet (EN)

VERSION

1.0

DATE

09 May 2022

REVISION

1.0

DOWNLOAD (ZIP) 1002.8 KB
Clipsal 41E10PBSWM & PDL356PB10, push button BLE time delay switch, Certificate, RCM, ULNZ LTD
ZIP

Clipsal 41E10PBSWM & PDL356PB10, push button BLE time delay switch, Certificate, RCM, ULNZ LTD

VERSION

1.1

DATE

29 Jul 2024

REVISION

1.1

DOWNLOAD (ZIP) 249.1 KB

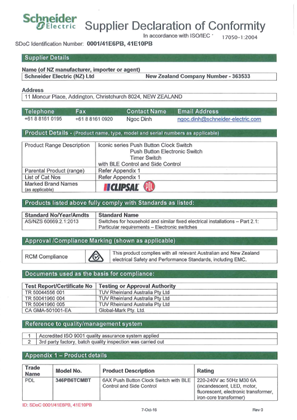

Iconic, -6AX, 10AX Switch, Declaration of Conformity
