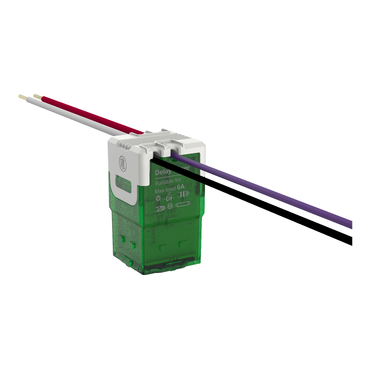

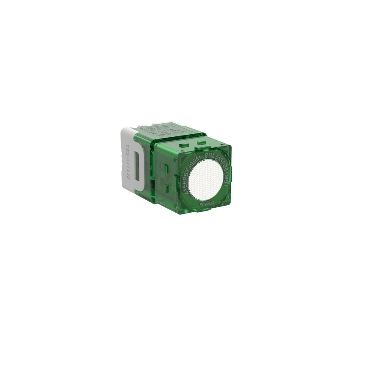

Iconic Pushbutton Timer Mechanism 3-Wire with ControlLink, 6A, 240V | Vivid White

Item Number: PDL348PB6TMBT-VW

Vivid White 1 PCE 1

The PDL Iconic Electronic Time Delay Switch Mechanism is packed with features to make your smart home truly connected. The 3-wire electronic timer switch can be configured using the Wiser Room app from your phone or tablet to control tasks with ease.

Where To Buy

Datasheet

Download

Product Dimensions

Width23 mm

Height23 mm

Embedding depth38 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9416175243202	VW
6	CAR	9416175243493	VW
72	CRT	19416175243209	VW

Specifications

Design

Range	PDL Iconic
Product or component type	timer
Colour tint	vivid white
Surface finish	matt

Physical

Device presentation	mechanism
Range compatibility	PDL Iconic
Device mounting	flush
Actuator	push-button
Fixing mode	clip-in
Type of packing	box
Sale per indivisible quantity	1
Remote control type	push-button Wiser room application
[ue] rated operational voltage	240 V AC 50 Hz
Load type	LED lighting 6 A incandescent lamp 6 A low voltage halogen lamp with iron core transformer 6 A low voltage halogen lamp with electronic transformer 6 A fluorescent lamp 6 A compact fluorescent lamp 6 A resistive 6 A
Derating factor	1 devices6 A without derating 2 devices4.5 A with derating factor 3 devices4 A with derating factor 4 devices3 A with derating factor 5 devices2 A with derating factor 6 devices1.5 A with derating factor
Operating distance	30 m
Control signal type	ControlLink
Connections - terminals	screw terminals
Number of terminals	4
Wiring configuration	3 wires with neutral
Screwdriver shape	square drive no 1 (SQ1) Philips
Local signalling	LED indicator (warm white)
Height	23 mm
Width	23 mm
Depth	40 mm
Embedding depth	38 mm
Standards	AS/NZS 60669.2.1
Ambient air temperature for storage	0...60 °C
Ambient air temperature for operation	0...45 °C
Relative humidity	0...90 %
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1708008EN
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Material

Material	PC (UL94 V-2): top PC MAS056 (UL94 V-2): bottom

Others

Legacy weee scope	In
Package 1 bare product quantity	1
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Time delay	1...86400 s (24 h) adjustable
Power range	> 0 W
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	3.9 cm
Package 1 width	6.7 cm
Package 1 length	8.7 cm
Package 1 weight	63 g
Sustainable packaging	No
End of life manual availability	ENVEOLI1708008EN
Warranty (in months)	18
