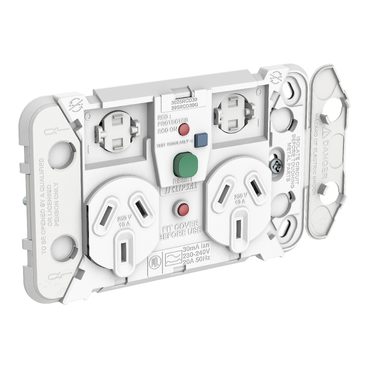

Iconic Switched Socket 2 Switch and 2 Socket, RCD, Horizontal, 10A
Item Number: PDL395RCD30G
Specifications
Design
| Range | PDL Iconic |
|---|---|
| Product or component type | switched socket |
| Colour tint | white |
| Surface finish | matt |
Physical
| Device presentation | mechanism with fixing frame |
|---|---|
| Outlet poles configuration | 2P + E with shutter |
| Outlet standard | Australian |
| Device mounting | flush |
| Number of power socket outlets | 2 |
| Number of rocker | 2 |
| Outlet standard description | with earthing contact |
| Ground lug position | straight 180° position |
| Fixing mode | by screw |
| Installation direction | horizontal |
| Type of packing | polybag |
| Quantity per set | set of 4 |
| Sale per indivisible quantity | 1 |
| Electrical durability | 12000 cycles |
| Screwdriver shape |
|
| Clamping connection capacity |
|
| Wire stripping length | 16 mm |
| Height | 78 mm |
| Width | 120 mm |
| Depth | 41 mm |
| Ambient air temperature for storage | 0...60 °C |
| Ambient air temperature for operation | 0...45 °C |
| Relative humidity | 10...95 % |
| Standards |
|
| Product certifications | RCM |
| Reach free of svhc | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant |
Material
| Device composition | 1 residual current device (RCD) 30 mA |
|---|---|
| Material |
|
