Pro Series Double Switched Socket + Indicator 10A

Home ProductsSwitches and SocketsPro SeriesDouble Switched Socket + Indicator

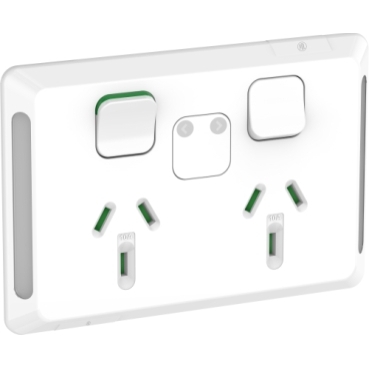

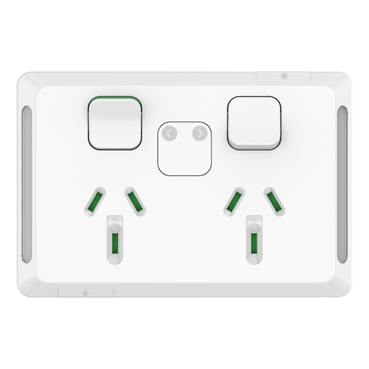

Pro Series Double Switched Socket + Indicator 10A | Extra White

Item Number: PDLP395PI-XW

Build this product

Socket outlet assembly for horizontal installations. Twin switched socket with power indicator. Pro Series skin and socket grid are included. PDL Pro Series. Colour: Extra White Rated current: 10A Operating voltage 250V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width116 mm

Height icon

Height78 mm

Depth icon

Depth38 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Pro Series

Product or component type

switched socket

Colour tint

white (XW)

Surface finish

glossy

Surface treatment

untreated

Physical

Device presentation

complete product

Outlet poles configuration

2P + E with shutter

Outlet standard

Australian

Device mounting

flush

Number of power socket outlets

2

Number of rocker

2

Range compatibility

Pro Series

Outlet standard description

with earthing contact

Ground lug position

straight 180° position

Fixing mode

by screws

Installation direction

horizontal

Local signalling

power status (green) for power supply

Type of packing

polybag

Quantity per set

set of 10

Sale per indivisible quantity

1

Rated current

10 A at 250 V AC 50 Hz

Connections - terminals

3 screw terminals

Screwdriver shape

  • square drive no 1 (SQ1)
  • Philips No 2

Clamping connection capacity

  • 1 x 2.5...4 x 2.5 mm² for rigid or stranded cable(s)
  • 3 x 4 mm² for rigid or stranded cable(s)

Wire stripping length

16 mm

Height

78 mm

Width

116 mm

Depth

38 mm

Net weight

0.094 kg

Ambient air temperature for operation

0...45 °C

Relative humidity

10...95 %

Standards

AS/NZ 3112

Product certifications

RCM

Ik degree of protection

IK08

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2309004EN

Circularity profile

N/A

Material

Material

  • PC (polycarbonate): fixing frame
  • PP (polypropylene)
  • POM (polyoxymethylene): shutter
  • PC (polycarbonate): window
  • ABS (acrylonitrile butadiene-styrene): infill piece
  • ABS (acrylonitrile butadiene-styrene): skin

Others

Package 1 bare product quantity

1

Outlet standard deviation

Australian/New Zealand

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.8 cm

Package 1 width

7.8 cm

Package 1 length

11.6 cm

Package 1 weight

111.11 g

Packaging without single use plastic

No

Packaging made with recycled cardboard

Yes

Green premium status for reporting

Green Premium product

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Recycled metal content at cr level

0

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

1.498455178974359

Global warming ; total life cycle​

1 kg CO2 eq.

Minimum percentage of recycled plastic content

0
Show all specifications
