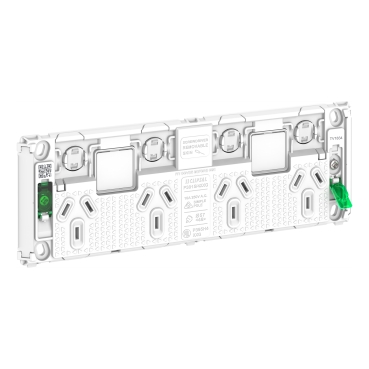

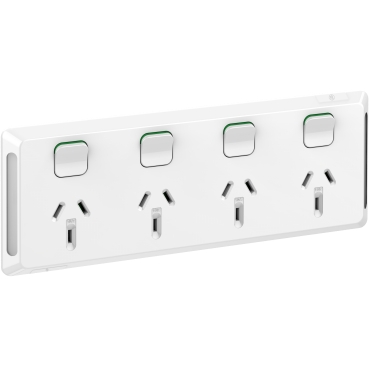

Pro Series Grid Quad Switched Socket 10A Horizontal

Pro Series Grid Quad Switched Socket 10A Horizontal

Item Number: PDLP395H4G

Socket outlet grid for horizontal installations. Quad switched socket grid. Suitable for PDL Pro Series, Iconic, Iconic Styl and Iconic Essence. Rated current: 10A. Operating voltage 250V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.

Datasheet

Product Dimensions

Width icon

Width205 mm

Height icon

Height72 mm

Depth icon

Depth36 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Pro Series

Product or component type

switched socket

Colour tint

white

Surface treatment

untreated

Physical

Device presentation

mechanism with fixing frame

Outlet poles configuration

2P + E with shutter

Outlet standard

Australian

Device mounting

flush

Number of power socket outlets

4

Number of rocker

4

Range compatibility

Pro Series

Outlet standard description

with earthing contact

Ground lug position

straight 180° position

Fixing mode

by screws

Installation direction

horizontal

Type of packing

polybag

Quantity per set

set of 10

Sale per indivisible quantity

1

Rated current

10 A at 250 V AC 50 Hz

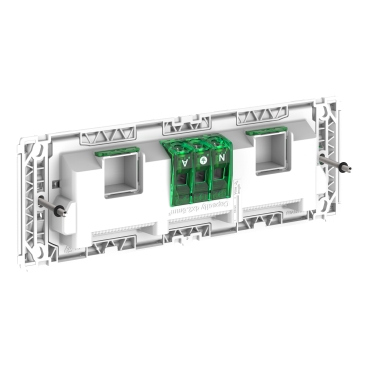

Connections - terminals

3 screw terminals

Screwdriver shape

square drive no 1 (SQ1)|Philips No 2

Clamping connection capacity

1 x 2.5...4 x 2.5 mm² for rigid or stranded cable(s)|3 x 4 mm² for rigid or stranded cable(s)

Wire stripping length

16 mm

Height

72 mm

Width

205 mm

Depth

36 mm

Net weight

0.178 kg

Ambient air temperature for operation

0...45 °C

Relative humidity

10...95 %

Standards

AS/NZ 3112

Product certifications

RCM

Ik degree of protection

IK08

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2309004EN

Circularity profile

N/A

Material

Material

PC (polycarbonate): fixing frame|PP (polypropylene)|POM (polyoxymethylene): shutter

Others

Package 1 bare product quantity

1

Outlet standard deviation

Australian/New Zealand

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.8 cm

Package 1 width

7.8 cm

Package 1 length

21.2 cm

Package 1 weight

39.68 g

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

1.5542920574358974
