Pro Series Grid Single Switched Socket 15A Vertical

Home ProductsSwitches and SocketsPro SeriesGrid Single Switched Socket

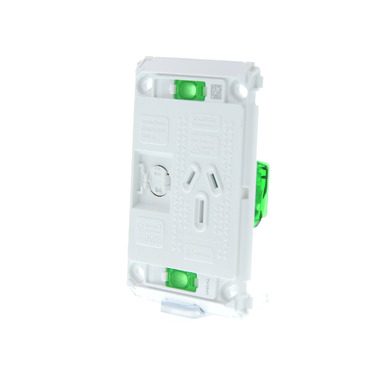

Pro Series Grid Single Switched Socket 15A Vertical

Item Number: PDLP391-15G

Build this product

Socket outlet grid for vertical installations. Single switched socket grid. Suitable for PDL Pro Series, Iconic, Iconic Styl and Iconic Essence. Rated current: 15A. Operating voltage 250V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width72 mm

Height icon

Height112 mm

Depth icon

Depth30 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Pro Series

Product or component type

switched socket

Colour tint

white

Surface treatment

untreated

Physical

Device presentation

mechanism with fixing frame

Outlet poles configuration

2P + E with shutter

Outlet standard

Australian

Device mounting

flush

Number of power socket outlets

1

Number of rocker

1

Range compatibility

Pro Series

Outlet standard description

with earthing contact

Ground lug position

straight 180° position

Fixing mode

by screws

Installation direction

vertical

Type of packing

polybag

Quantity per set

set of 10

Sale per indivisible quantity

1

Rated current

15 A at 250 V AC 50 Hz

Connections - terminals

3 screw terminals

Screwdriver shape

  • square drive no 1 (SQ1)
  • Philips No 2

Clamping connection capacity

  • 1 x 2.5...4 x 2.5 mm² for rigid or stranded cable(s)
  • 3 x 4 mm² for rigid or stranded cable(s)

Wire stripping length

16 mm

Height

112 mm

Width

72 mm

Depth

30 mm

Net weight

0.078 kg

Ambient air temperature for operation

0...45 °C

Relative humidity

10...95 %

Standards

AS/NZ 3112

Product certifications

RCM

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

  • PC (polycarbonate): fixing frame
  • PP (polypropylene)
  • POM (polyoxymethylene): shutter

Others

Average percentage of recycled plastic content

0 %

Weee label

N/A

Weee applicability

Finished product

Package 1 bare product quantity

1

Outside of Europe

Outlet standard deviation

Australian/New Zealand

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.6 cm

Package 1 width

7.2 cm

Package 1 length

11.2 cm

Package 1 weight

80.56 g

Sustainable packaging

No

Pvc free

No

Halogen-free status

Halogen free product

Silicone-free

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Halogen-free status

Halogen free product

Pvc free

No

Silicone-free

No

Take-back

No

Warranty (in months)

18
Show all specifications
