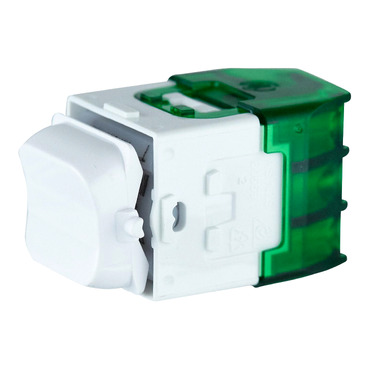

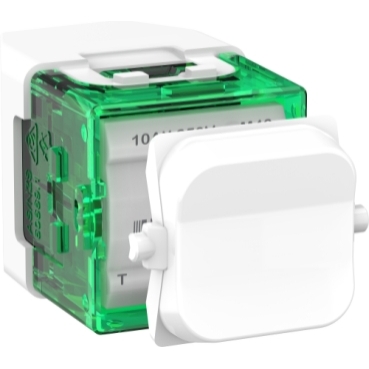

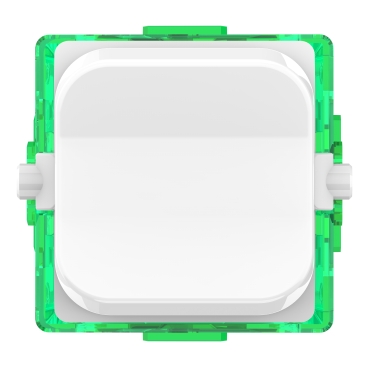

Pro Series Module Momentary Switch 10A 3-Positions | Extra White
Item Number: PDLP387M3TM-XW
Momentary toggle switch mechanism. There are 3 positions on the toggle switch. 300 Series mechanism. PDL Pro Series. Colour: Extra White Rated current: 10A. Operating voltage 250V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.
Specifications
Design
| Product brand | PDL |
|---|---|
| Range | Pro Series |
| Product or component type | switch |
| Device application | momentary switch |
| Aesthetic name | Iconic |
| Colour tint | extra white |
| Surface treatment | untreated |
| Surface finish | glossy |
Physical
| Number of rocker | 1 |
|---|---|
| Switch function | 3 positions |
| Load type | serial boost load (SBL) 100 W |
| Quantity per set | set of 20 |
| Device presentation | mechanism with central plate |
| Device mounting | flush |
| Actuator | rocker |
| [ue] rated operational voltage | 250 V |
| Rated current | 10 A |

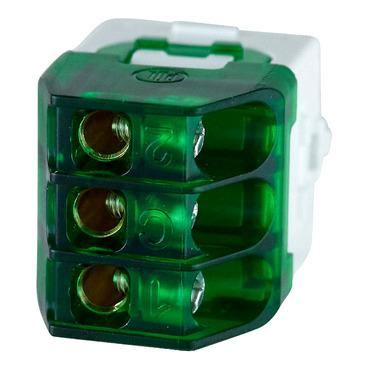

| Connections - terminals | screw terminals |
| Clamping connection capacity |
|
| Fixing mode | by clipping locks |
| Marking | ON-OFF-ON |
| Width | 23 mm |
| Height | 23 mm |
| Depth | 32 mm |
| Net weight | 16 g |
| Relative humidity | 10...95 % |
| Ambient air temperature for operation | 0...45 °C |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1607003EN |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | PC (polycarbonate) |
|---|
Documents & downloads
Filter items
-
All
-
Environmental Disclosure
-
Certificates (MSDS)
-

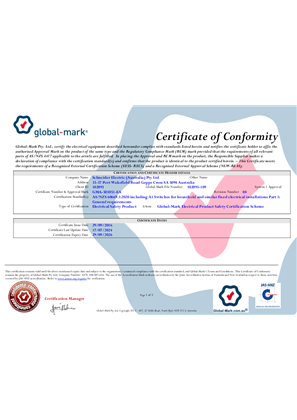

Declaration of Conformity (Sustainability)
