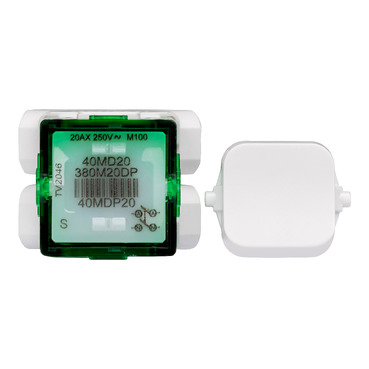

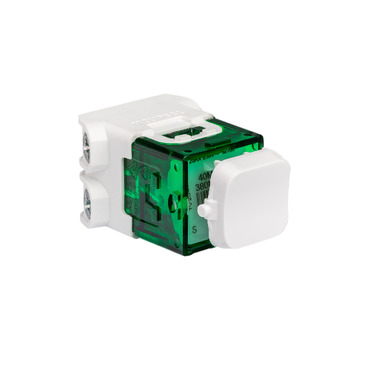

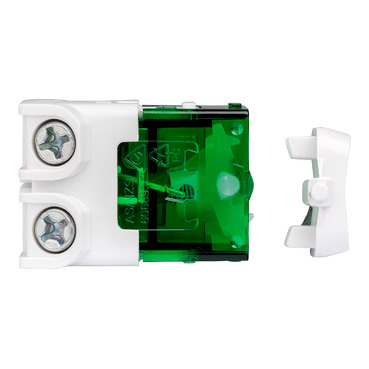

Pro Series Module Switch 20A 1-Way 2-Pole, White

Item Number: PDLP380M20DP

1 PCE 1

Switch mechanism. One-way switching. Double-pole switch. 300 Series mechanism. Suitable for PDL Pro Series, Iconic, Iconic Styl and Iconic Essence. Rated current: 20A. Operating voltage 250V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.

Where To Buy

Datasheet

Download

Product Dimensions

Width23 mm

Height23 mm

Depth33 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9416175265334	-

Specifications

Design

Product brand	PDL
Range	Pro Series
Product or component type	switch
Device application	switching loads
Aesthetic name	Iconic
Surface finish	glossy

Physical

Number of rocker	1
Switch function	2-pole 1-way
Quantity per set	set of 20
Device presentation	mechanism
Device mounting	flush
Actuator	rocker
[ue] rated operational voltage	230/240 V
Rated current	20 AX
Connections - terminals	screw terminals
Clamping connection capacity	1 x 1.5...4 x 1.5 mm² for rigid or stranded cable(s) 3 x 2.5 mm² for stranded cable(s) 1 x 4 mm² for stranded cable(s)
Fixing mode	by clipping locks
Width	23 mm
Height	23 mm
Depth	33 mm
Net weight	16 g
Relative humidity	10...95 %
Ambient air temperature for operation	0...45 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1607003EN
Eu rohs directive	Compliant By Exemption

Material

Material	PC (polycarbonate)

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Weee applicability	Finished product
Technology type	electromechanical
Network type	AC
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.2 cm
Package 1 width	2.2 cm
Package 1 length	2.4 cm
Package 1 weight	16.98 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0.3 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.08383848362116955
Carbon footprint of the manufacturing phase [a1 to a3]	0.1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.12107613697984285
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0037640781668768623
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.0446696459183316
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.02870219622987898
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.2820505409160998
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
