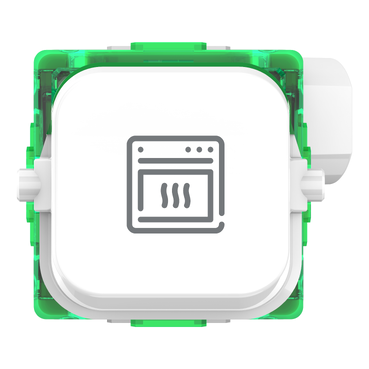

Pro Series Module Switch 32A OVEN | Extra White

Item Number: PDLP380M32O-XW

Extra White 1 PCE 1

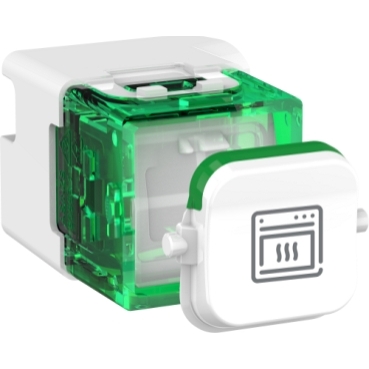

Switch mechanism. One-way switching. Rocker marked OVEN is included. 300 Series mechanism. PDL Pro Series. Colour: Extra White Rated current: 32A. Operating voltage 250V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.

Where To Buy

Datasheet

Download

Product Dimensions

Width23 mm

Height23 mm

Depth32 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9416175263897	XW

Specifications

Design

Product brand	PDL
Range	Pro Series
Product or component type	switch
Device application	switching loads
Aesthetic name	Iconic
Colour tint	extra white
Surface treatment	untreated
Surface finish	glossy

Physical

Number of rocker	1
Switch function	1-way
Quantity per set	set of 10
Device presentation	mechanism with central plate
Device mounting	flush
Actuator	rocker
[ue] rated operational voltage	250 V
Rated current	32 A
Connections - terminals	screw terminals
Clamping connection capacity	1 x 1.5...4 x 1.5 mm² for rigid or stranded cable(s) 3 x 2.5 mm² for stranded cable(s) 1 x 4 mm² for stranded cable(s)
Fixing mode	by clipping locks
Marking	oven
Width	23 mm
Height	23 mm
Depth	32 mm
Net weight	10 g
Relative humidity	10...95 %
Ambient air temperature for operation	0...45 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1607003EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Material

Material	PC (polycarbonate)

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Technology type	electromechanical
Network type	AC
Main colour tint	extra white
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.2 cm
Package 1 width	2.2 cm
Package 1 length	2.4 cm
Package 1 weight	20.98 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0.3 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.10358842086997273
Carbon footprint of the manufacturing phase [a1 to a3]	0.1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.1495981951611957
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.004650786804539256
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.0446696459183316
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.03546360876930866
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	No
Halogen-free status	Halogen free product
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.33797065752334793
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Halogen-free status	Halogen free product
Pvc free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
