Pro Series Protective Box IK10 Lockable lid | Arctic Silver
Item Number: PDLP223H-3A

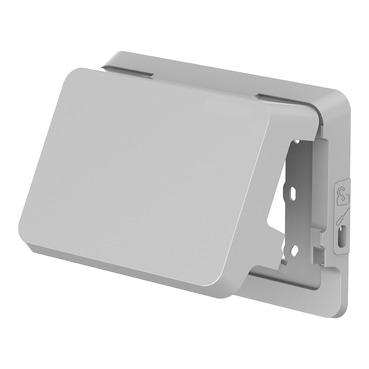

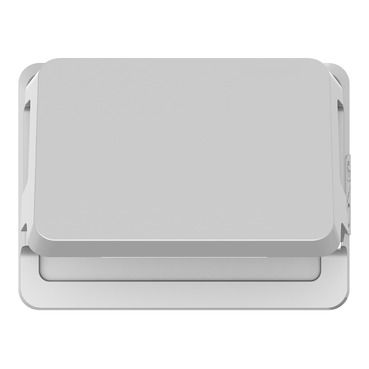

Protective box IK10 with lockable lid. PDL Pro Series.
Datasheet
Close
Specifications
Design
| Range | Pro Series |
|---|---|
| Product brand | PDL |
| Product or component type | box |
| Device application | protection |
| Colour tint | aluminium |
| Market segment | commercial |
Physical
| Device mounting | wall mounted |
|---|---|
| Mounting mode | surface mounted |
| Mounting support | wall box |
| Installation direction | horizontal |
| Fixing mode | by screws |
| Length | 150 mm |
| Depth | 45 mm |
| Height | 112 mm |
| Ik degree of protection | IK10 |
| Ambient air temperature for operation | 0...45 °C |
| Reach free of svhc | Yes |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2206023EN |
| Reach regulation | Free of Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant |
Material
| Material | zinc alloy |
|---|
