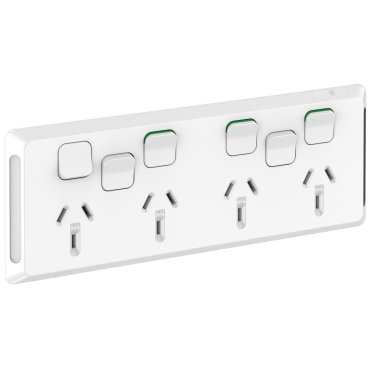

Pro Series Quad Swiched Socket 10A + 2 Switches Horizontal | Extra White
Item Number: PDLP395H4XXUA-XW
Close
Socket outlet assembly for horizontal installations. Quad switched socket with two optional extra switch apertures. Pro Series skin and socket grid are included. PDL Pro Series. Colour: Extra White Rated current: 10A Operating voltage 250V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.
Specifications
Design
| Range | Pro Series |
|---|---|
| Product or component type | switched socket |
| Colour tint | white (XW) |
| Surface finish | glossy |
| Surface treatment | untreated |
Physical
| Device presentation | complete product |
|---|---|
| Outlet poles configuration | 2P + E with shutter |
| Outlet standard | Australian |
| Device mounting | flush |
| Number of power socket outlets | 4 |
| Number of rocker | 4 |
| Range compatibility | Pro Series |
| Outlet standard description | with earthing contact |
| Ground lug position | straight 180° position |
| Number of gangs | 2 gangs |
| Fixing mode | by screws |
| Installation direction | horizontal |
| Type of packing | polybag |
| Quantity per set | set of 10 |
| Sale per indivisible quantity | 1 |
| Rated current | 10 A at 250 V AC 50 Hz |
| Connections - terminals | 3 screw terminals |
| Screwdriver shape |
|
| Clamping connection capacity |
|
| Wire stripping length | 16 mm |
| Height | 78 mm |
| Width | 212 mm |
| Depth | 38 mm |
| Net weight | 0.216 kg |
| Ambient air temperature for operation | 0...45 °C |
| Relative humidity | 10...95 % |
| Standards | AS/NZ 3112 |
| Product certifications | RCM |
| Ik degree of protection | IK08 |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2309004EN |
| Eu rohs directive | Compliant By Exemption |
Material
| Material |
|
|---|
