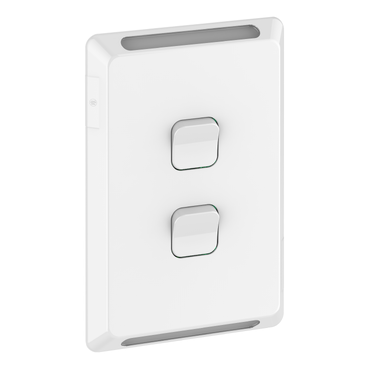

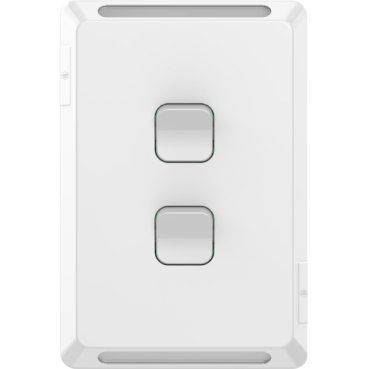

Pro Series Switch 20A 16AX 2-Gang, White

Pro Series Switch 20A 16AX 2-Gang, White | Extra Vivid White

Item Number: PDLP382-XW

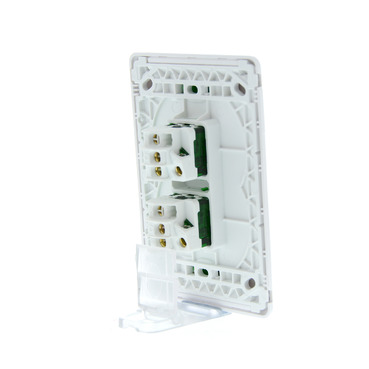

Switch assembly. Pro Series skin, grid and switch mechanism are included. Suitable for 2-gang vertical installations. PDL Pro Series. Colour: Extra White Rated current: 20A / 16AX Operating voltage 230/240VAC 50Hz Note: Requires installation by an appropriately licenced electrician.

Datasheet

Product Dimensions

Width icon

Width78 mm

Height icon

Height116 mm

Depth icon

Depth38 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product brand

PDL

Range

Pro Series

Product or component type

switch

Device application

lighting

Colour tint

white

Surface treatment

untreated

Surface finish

glossy

Physical

Number of rocker

2

Installation direction

vertical

Quantity per set

set of 10

Device presentation

complete product

Device mounting

flush

[ue] rated operational voltage

230/240 V

Rated current

20 A/16 AX

Clamping connection capacity

  • 1 x 1.5...4 x 1.5 mm² for rigid or stranded cable(s)
  • 3 x 2.5 mm² for stranded cable(s)
  • 1 x 4 mm² for stranded cable(s)

Fixing mode

by screws

Width

78 mm

Height

116 mm

Depth

38 mm

Net weight

82 g

Relative humidity

10...95 %

Ambient air temperature for operation

0...45 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1607003EN

Circularity profile

N/A

Material

Material

PC (polycarbonate)

Others

Package 1 bare product quantity

1

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Technology type

electromechanical

Network type

AC

Main colour tint

white

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.8 cm

Package 1 width

7.8 cm

Package 1 length

11.6 cm

Package 1 weight

69.53 g

Green premium status for reporting

Green Premium product

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Recycled metal content at cr level

0

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

3.821323616880001

Global warming ; total life cycle​

4 kg CO2 eq.

Minimum percentage of recycled plastic content

0
