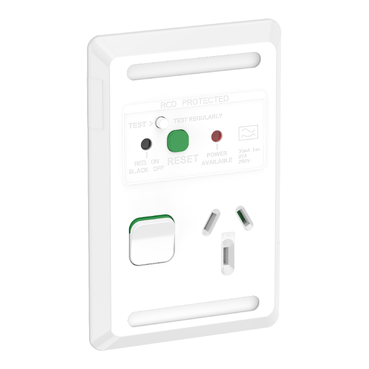

Pro Series Switched RCD Socket 10A Vertical 30mA | Extra White
Item Number: PDLP391RCD30-XW
Product PDLP391RCD30-XW is replaced by PDLP395RCD30. PDLP395RCD30-XW is twin socket and horizontal orientation.
View here.
Specifications
Design
| Range | Pro Series |
|---|---|
| Product or component type | switched socket |
| Colour tint | white (XW) |
| Surface finish | glossy |
| Surface treatment | untreated |
Physical
| Device presentation | complete product |
|---|---|
| Outlet poles configuration | 2P + E with shutter |
| Outlet standard | Australian |
| Device mounting | flush |
| Number of power socket outlets | 1 |
| Number of rocker | 1 |
| Range compatibility | Pro Series |
| Outlet standard description | with earthing contact |
| Ground lug position | straight 180° position |
| Fixing mode | by screws |
| Installation direction | vertical |
| Type of packing | polybag |
| Quantity per set | set of 10 |
| Sale per indivisible quantity | 1 |
| Rated current | 10 A at 250 V AC 50 Hz |
| Connections - terminals | 3 screw terminals |
| Screwdriver shape |
|
| Clamping connection capacity |
|
| Wire stripping length | 16 mm |
| Height | 78 mm |
| Width | 116 mm |
| Depth | 41 mm |
| Net weight | 0.094 kg |
| Ambient air temperature for operation | 0...45 °C |
| Relative humidity | 10...95 % |
| Standards | AS/NZ 3112 |
| Product certifications | RCM |
| Ik degree of protection | IK08 |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material |
|
|---|
