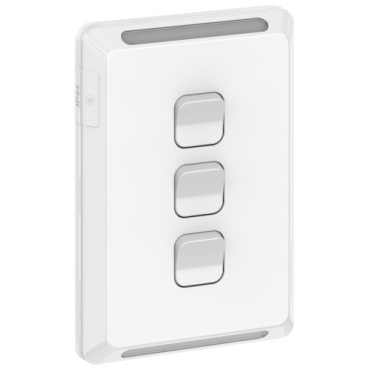

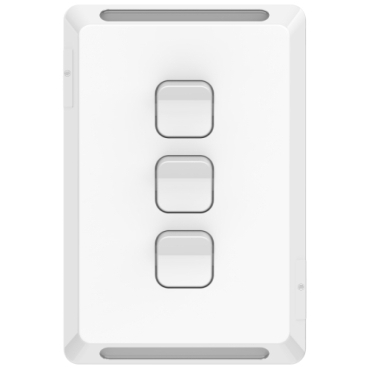

Pro Series Waterproof Switch 20A 16AX IP44 3-Gang | Extra White

Item Number: PDLP383VWP-XW

Extra White 1 PCE 1

Build this product i

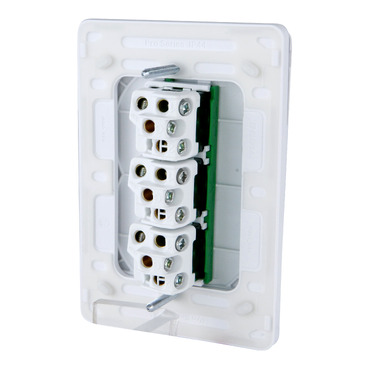

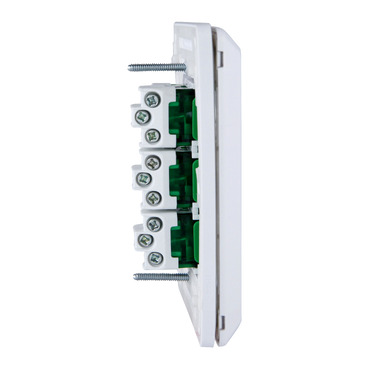

Switch assembly. Pro Series skin, grid and switch mechanism are included. Suitable for 3-gang installations that require IP44 rated protection. PDL Pro Series. Colour: Extra White Rated current: 16AX. Operating voltage 230/240VAC 50Hz Note: Requires installation by an appropriately licenced electrician.

Where To Buy

Datasheet

Download

Product Dimensions

Width78 mm

Height116 mm

Depth40 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9416175263774	XW

Specifications

Design

Product brand	PDL
Range	Pro Series
Product or component type	switch
Device application	lighting
Surface treatment	untreated
Surface finish	glossy

Physical

Number of rocker	3
Installation direction	vertical
Quantity per set	set of 5
Device presentation	complete product
Device mounting	wall
[ue] rated operational voltage	230/240 V
Rated current	20 A/16 AX
Clamping connection capacity	1 x 1.5...4 x 1.5 mm² for rigid or stranded cable(s) 3 x 2.5 mm² for stranded cable(s) 1 x 4 mm² for stranded cable(s)
Fixing mode	by screws
Ip degree of protection	IP44
Width	78 mm
Height	116 mm
Depth	40 mm
Net weight	0.135 kg
Relative humidity	10...95 %
Ambient air temperature for operation	0...45 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP120809EN
Eu rohs directive	Compliant By Exemption

Others

Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Weee applicability	Finished product
Warranty duration(in months) bmecat	18
Main colour tint	extra white
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	3.8 cm
Package 1 width	7.8 cm
Package 1 length	11.6 cm
Package 1 weight	138.53 g
Total lifecycle carbon footprint	5 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.7406988762760689
Carbon footprint of the manufacturing phase [a1 to a3]	0.7 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.04153668369378156
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.025427682022742096
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	3.4192
Carbon footprint of the use phase [b2, b3, b4, b6]	3 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.33958360895078715
Carbon footprint of the end-of-life phase [c1 to c4]	0.3 kg CO2 eq.
Pvc free	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	4.56644685094338
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	No
Take-back	No
Warranty (in months)	18
